To create a data source, specify information about the database to be connected.

The following shows the dialog box for creating a data source.

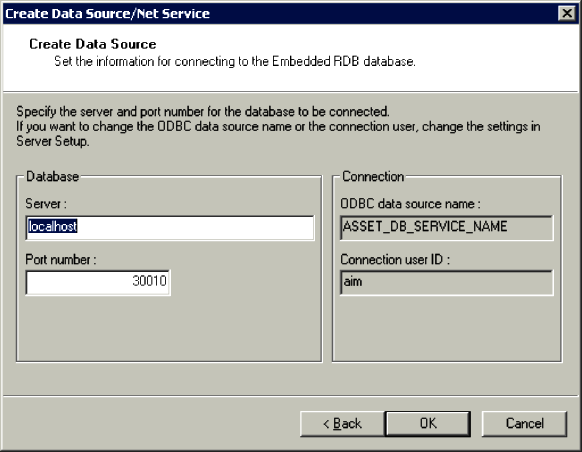

Figure 5-13 Dialog box for creating a data source (for Embedded RDB)

To return to the list of connection targets, click the Back button.

To create a data source:

1. In the dialog box for creating a data source, specify Server and Port number.
   The following describes each item in the dialog box.

   • Server
     Specifies the host name of the database to be connected. The permitted value is 1 to 63 bytes of alphanumeric characters and %, ~, -, _, ., /, and \. If the connection target is Asset Information Manager, localhost is specified by default. For JP1/Software Distribution, a space is specified by default.

   • Port number
     Specify the port number of the database server to be connected. Specify an integer from 5001 to 65535. By default, 30010 is specified if the connection target is Asset Information Manager and 30008 if the connection target is JP1/Software Distribution.

   • ODBC data source name
     Displays the value specified in the Server Setup dialog box. This item cannot be changed. The displayed value depends on the product selected in Products for connection. The following table shows the items in the Server Setup dialog box that correspond to the selected product.


     Table 5-9 Items in the Server Setup dialog box that correspond to the selected product (ODBC data source name)

     Selected product	Item in the Server Setup dialog box
     Asset Information Manager	Service name
     JP1/Software Distribution	Connection service for JP1/SD database

   • Connection user ID
     Displays the value specified in the Server Setup dialog box. This item cannot be changed. The displayed value depends on the product selected in Products for connection. The following table shows the items in the Server Setup dialog box that correspond to the selected product.


     Table 5-10 Items in the Server Setup dialog box that correspond to the selected product (connection user ID)

     Selected product	Item in the Server Setup dialog box
     Asset Information Manager	Login ID
     JP1/Software Distribution	JP1/SD database login ID

2. Click the OK button.
   The data source is created according to the specified settings. When the data source creation is completed, a message to that effect is displayed.

3. Click the OK button.
   The dialog box for creating a data source is closed and the list of connection targets is displayed again.
