4.2.4 Log Information window

The figure below shows an example of a window that displays from the Operations-Manager Console another host's log information. This subsection describes the functions that can be used in the Log Information window.

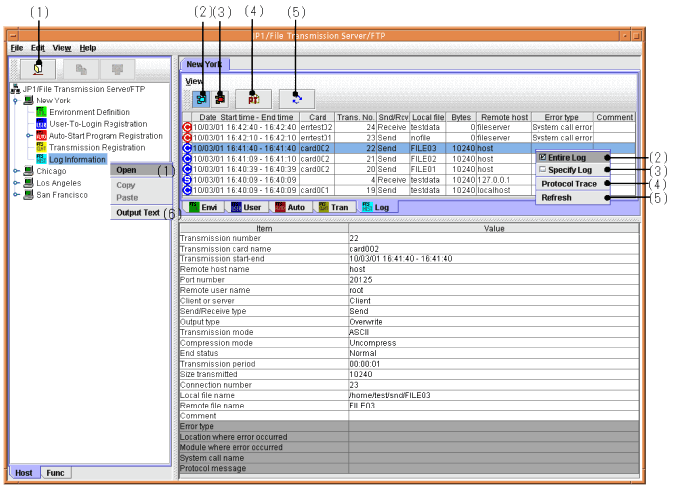

Figure 4-6 Log Information window

Click , or right-click in the tree window: Opens host information.

Click , or right-click in the list window: Displays all log information.

Click , or right-click in the list window: Displays specific log information.

Click , or right-click in the list window: Displays protocol trace.

Click , or right-click in the list window: Refreshes information.

Right-click in the tree window: Outputs log information as text.

About the logs for transmissions with the same time

If there are multiple logs with the same time, the order in which the information is displayed in the Operations-Manager Console's log information window might be different from the display order in the Log Information window.

About the display of protocol trace information

The Log Information window displays all trace information, even if there is a trace of a transmission. This differs from when a protocol trace is displayed using the ftshist command for displaying the Log Information window

About text output

A sample format for text that is output is set up during installation. You use this format file at the Operations-Manager Console host.

You can edit the format file to create a desired format. For details about how to edit the format file, see E. Format Files Used for Output of Definition Information.
