Job Management Partner 1/File Transmission Server/FTP Description, Reference and Operator's Guide

4.2.3 Transmission Registration window

The figure below shows an example of a window that displays from the Operations-Manager Console the transmission information registration details at another host. This subsection describes the functions that you can use in the Transmission Registration window.

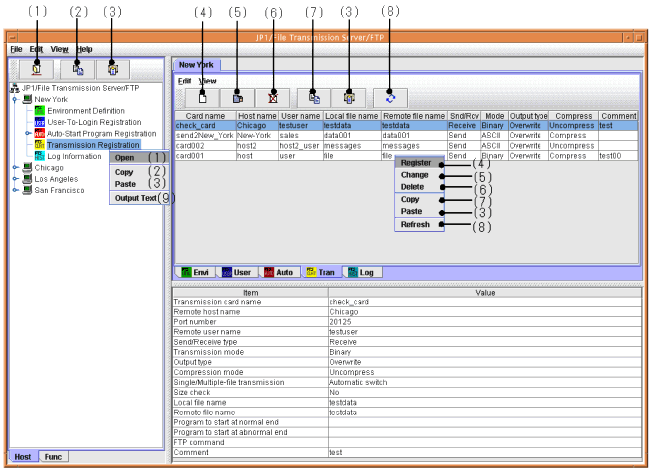

Figure 4-5 Transmission Registration window

Click , or right-click in the tree window: Opens host information.

Click , or right-click in the tree window: Copies all transmission information that has been registered.

Click , or right-click in the tree or list window: Pastes the copied information.

Click , or right-click in the list window: Registers new transmission information.

Click , or right-click in the list window: Changes registered transmission information.

Click , or right-click in the list window: Deletes transmission information.

Click , or right-click in the list window: Copies the specified transmission information.

Click , or right-click in the list window: Refreshes information.

Right-click in the tree window: Outputs the transmission information as text.

When Cancel is clicked while Register or Change processing is underway

The message Canceled is displayed, but the registration or change processing might have already been completed.

About text output

A sample format for text that is output is set up during installation. You use this format file at the Operations-Manager Console host.

You can edit the format file to create a desired format. For details about how to edit the format file, see E. Format Files Used for Output of Definition Information.

Note

Transmission information cannot be copied between Windows hosts and UNIX hosts that have been set as managed hosts.
