Job Management Partner 1/File Transmission Server/FTP Description, Reference and Operator's Guide

3.9.1 Registering the host names

Create a definition file as shown below and then specify the host names.

Organization of this subsection

(1) Creating a definition file

(2) Contents of the definition file

(1) Creating a definition file

Create a definition file with the following path name:

JP1/FTP-installation-directory\FTPPASV.INI

(2) Contents of the definition file

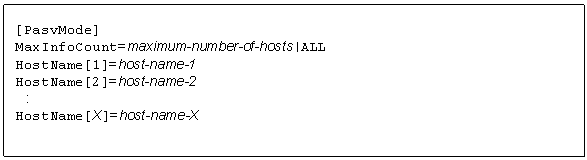

Specify information in the format of a Windows initialization file (.ini), as shown below:

The following table lists and describes the section, keys, and values that can be specified.

Table 3-10 Contents of the definition file in the PASV mode

Section Key Value Description

[PasvMode] MaxInfoCount maximum-number-of-hosts | ALL Specifies the number of remote FTP server hosts to which transmission of files in the PASV mode will be permitted:

maximum-number-of-hosts: Specifies a maximum value for X in the HostName[X] lines that follow this line.

ALL: Specifies that file transmission in the PASV mode is to be permitted for all remote FTP server hosts. When ALL is specified, any HostName[X] lines are ignored.

HostName[X] host-name Specifies the host name of a remote FTP server to which file transmission in the PASV mode will be permitted. Specify on a separate line each host that is to be registered.
For a host name, specify the same remote host name as is used in the transmission information.

For X, specify a value of 1 or greater but no greater than the value of MaxInfoCount. If the specified value is greater than the value of MaxInfoCount, the specification is ignored.

The X value on each line must be unique.

The X values can be specified in any order.

Examples

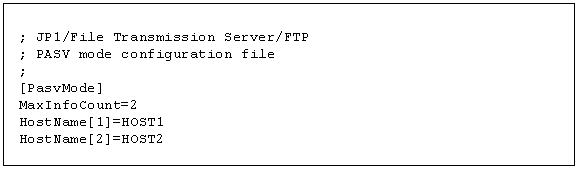

Example 1: Enable transmission of files to HOST1 and HOST2 in the PASV mode:

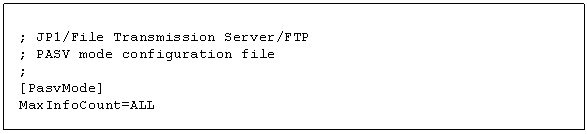

Example 2: Enable transmission of files to all hosts in the PASV mode:

Section	Key	Value	Description
[PasvMode]	MaxInfoCount	maximum-number-of-hosts \| ALL	Specifies the number of remote FTP server hosts to which transmission of files in the PASV mode will be permitted: maximum-number-of-hosts: Specifies a maximum value for X in the HostName[X] lines that follow this line. ALL: Specifies that file transmission in the PASV mode is to be permitted for all remote FTP server hosts. When ALL is specified, any HostName[X] lines are ignored.
HostName[X]	host-name	Specifies the host name of a remote FTP server to which file transmission in the PASV mode will be permitted. Specify on a separate line each host that is to be registered. For a host name, specify the same remote host name as is used in the transmission information. For X, specify a value of 1 or greater but no greater than the value of MaxInfoCount. If the specified value is greater than the value of MaxInfoCount, the specification is ignored. The X value on each line must be unique. The X values can be specified in any order.
