6.1 Window configuration

The following table lists and describes how the windows of JP1/AJS3 - Web Operation Assistant are configured.

Table 6-1 JP1/AJS3 - Web Operation Assistant window configuration

Windows and frames Functions

Login window A window for logging on to JP1/AJS3 - Web Operation Assistant.

Monitor window A window for monitoring the status of the items. This window consists of the following frames:

Frame for setting status acquisition conditions This frame specifies the conditions for acquiring the status of the items to be monitored.

Statuses frame This frame displays a list of status that is acquired according to the specified conditions. In this frame, you can start JP1/AJS3 - View or JP1/AJS2 - View and re-execute operations.
This frame has two types of windows: an initial window and a window that is displayed by clicking the Display Selected on Status View button in the status confirmation frame. The second type is used to show the units that were used the previous time.

Operation confirmation frame This frame appears when an operation button is clicked in the status view frame. This frame allows you to check the target of operation and specify the operation options.

Operation results frame This frame displays the results of the command executed by clicking an operation button.

Status confirmation frame This frame displays the status of each unit on which a command was executed with an operation button. This frame allows you to check the status of a unit and select the target on which you want to retry operation.

Title frame This frame displays the product name, and provides the User environment settings and Logout hyperlinks.

User Environment Settings window A window for changing the environment settings for the user who has logged on. This window consists of the frames:

Item selection frame This frame displays the menu of items to be set up.

Settings frame This frame specifies the environment settings.

Title frame This frame displays the product name, and provides the User environment settings and Logout hyperlinks.

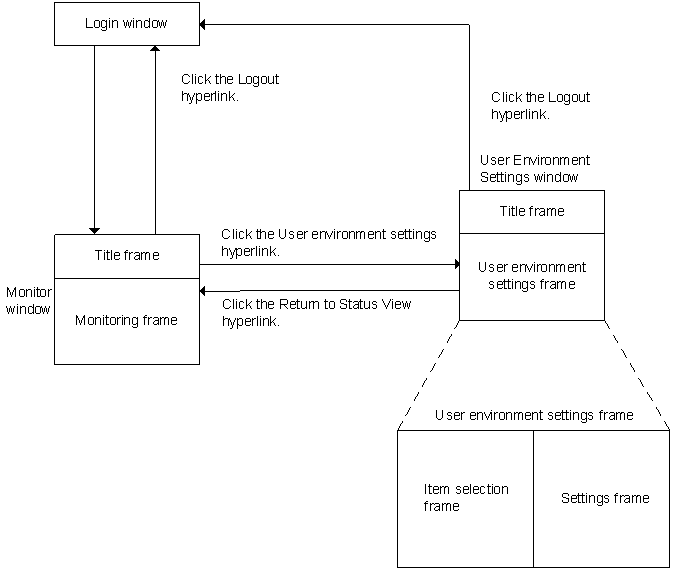

The following figure describes how the window display changes in JP1/AJS3 - Web Operation Assistant.

Figure 6-1 Window transition

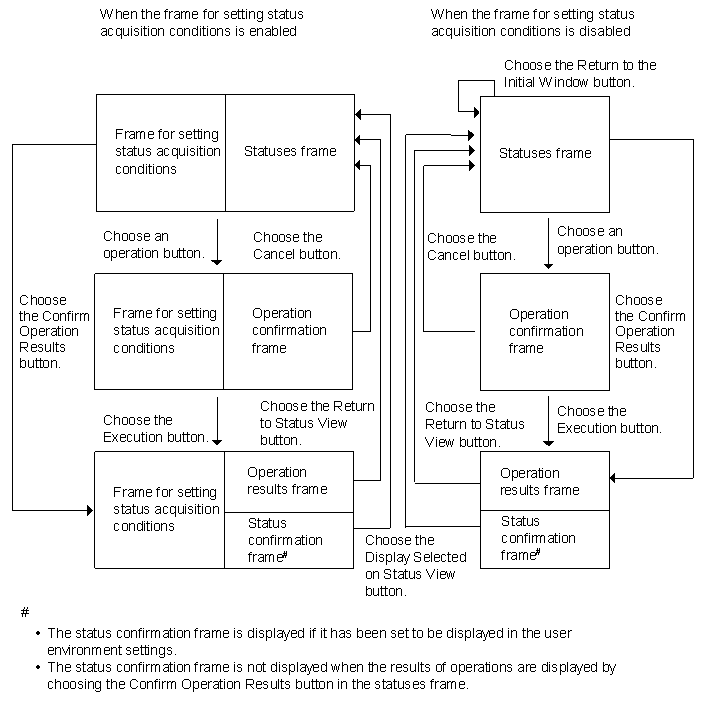

Figure 6-2 Window transition for the Monitor window frames

Windows and frames	Functions
Login window	A window for logging on to JP1/AJS3 - Web Operation Assistant.
Monitor window	A window for monitoring the status of the items. This window consists of the following frames:
Frame for setting status acquisition conditions	This frame specifies the conditions for acquiring the status of the items to be monitored.
Statuses frame	This frame displays a list of status that is acquired according to the specified conditions. In this frame, you can start JP1/AJS3 - View or JP1/AJS2 - View and re-execute operations. This frame has two types of windows: an initial window and a window that is displayed by clicking the Display Selected on Status View button in the status confirmation frame. The second type is used to show the units that were used the previous time.
Operation confirmation frame	This frame appears when an operation button is clicked in the status view frame. This frame allows you to check the target of operation and specify the operation options.
Operation results frame	This frame displays the results of the command executed by clicking an operation button.
Status confirmation frame	This frame displays the status of each unit on which a command was executed with an operation button. This frame allows you to check the status of a unit and select the target on which you want to retry operation.
Title frame	This frame displays the product name, and provides the User environment settings and Logout hyperlinks.
User Environment Settings window	A window for changing the environment settings for the user who has logged on. This window consists of the frames:
Item selection frame	This frame displays the menu of items to be set up.
Settings frame	This frame specifies the environment settings.
Title frame	This frame displays the product name, and provides the User environment settings and Logout hyperlinks.
