Job Management Partner 1/Automatic Job Management System 3 - Web Operation Assistant Description, Operator's Guide and Reference
The following figure shows the procedure for setting the required information on JP1/AJS3 - Manager or JP1/AJS2 - Manager to enable passing through a firewall.

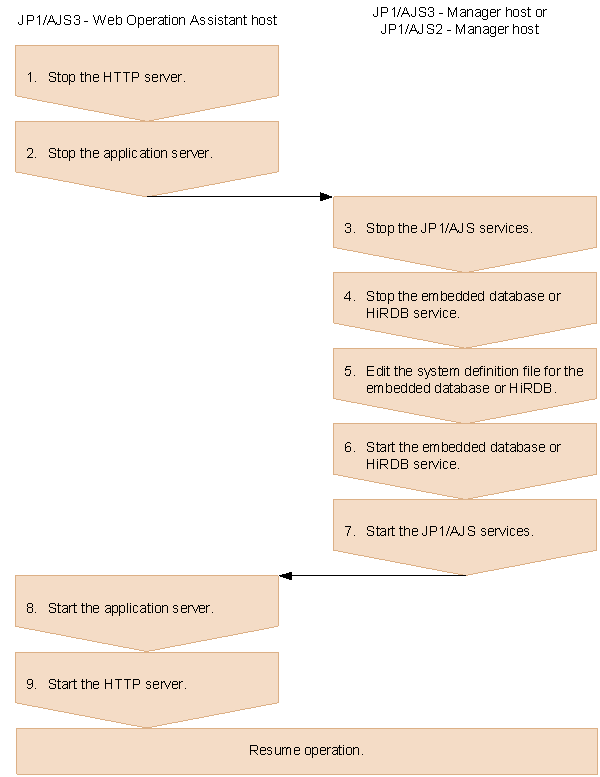

Figure 3-9 Setup procedure on JP1/AJS3 - Manager or JP1/AJS2 - Manager
To specify the settings:
- Stop the HTTP server.
On the JP1/AJS3 - Web Operation Assistant host, from Windows Control Panel, choose Administrative Tools and Services, and then stop the following service:
JP1/AJS3 WOA HTTP Server
- Stop the application server.
On the JP1/AJS3 - Web Operation Assistant host, from Windows Control Panel, choose Administrative Tools and Services, and then stop the following service:
JP1/AJS3 WOA Web Application Server
- Stop the JP1/AJS services.
From Windows Control Panel, choose Administrative Tools and Services, and then stop all the JP1/AJS services.
- Stop the embedded database or HiRDB service.
- For the embedded database:
- From Windows Control Panel, choose Administrative Tools and Services, and then stop the following service:
- - When the monitoring target is JP1/AJS3 - Manager:
- JP1/AJS3 service
- - When the monitoring target is JP1/AJS2 - Manager:
- HiRDB/EmbeddedEdition_JAn#
- For HiRDB:
- Stop the HiRDB service. For details about how to stop the HiRDB service, see the manual HiRDB System Operation Guide.
- Edit the system definition file for the embedded database or HiRDB.
- For the embedded database:
- Edit the system common definition for the embedded database. For details on the embedded database's system common definition and how to specify the definition when you use JP1/AJS3 - Manager on the monitoring target, see the manual Job Management Partner 1/Automatic Job Management System 3 Configuration Guide 1. If you are using JP1/AJS2 - Manager Version 8, see the manual Job Management Partner 1/Automatic Job Management System 2 Planning and Administration Guide. If you are using JP1/AJS2 - Manager Version 7, see the manual Job Management Partner 1 Embedded Database Operator's Guide.
Definition file name: pdsys
Folder: embedded-database-operations-folder\conf
- For HiRDB:
- Edit the HiRDB system common definition. For details about the HiRDB system common definition and how to specify it, see the manual HiRDB System Definition.
- Start the embedded database or HiRDB service.
- For the embedded database:
- From Windows Control Panel, choose Administrative Tools and Services, and then start the following service you stopped in step 4:
- - When the monitoring target is JP1/AJS3 - Manager:
- JP1/AJS3 service
- - When the monitoring target is JP1/AJS2 - Manager:
- HiRDB/EmbeddedEdition_JAn#
- For HiRDB:
- Start the HiRDB service. For details about how to start the HiRDB service, see the manual HiRDB System Operation Guide.
- Start the JP1/AJS services.
From Windows Control Panel, choose Administrative Tools and Services, and then start the services you stopped in step 3.
- Start the application server.
On the JP1/AJS3 - Web Operation Assistant host, from Windows Control Panel, choose Administrative Tools and Services, and then start the following service you stopped in step 2:
JP1/AJS3 WOA Web Application Server
- Start the HTTP server.
On the JP1/AJS3 - Web Operation Assistant host, from Windows Control Panel, choose Administrative Tools and Services, and then start the following service you stopped in step 1:
JP1/AJS3 WOA HTTP Server
# JAn is the identifier of the embedded database.
