Job Management Partner 1/Automatic Job Management System 3 - Web Operation Assistant Description, Operator's Guide and Reference

2.1 Overview of functions

In the frame for setting status acquisition conditions of the Monitor window, when you specify search conditions, such as a unit name, execution status, or comment string, and click the Status acquisition button, information about the jobs and jobnets that meet those conditions are displayed as a list in the statuses frame. From this list view, you can select jobs or jobnets that you would like to operate and perform operations such as re-execution, or start JP1/AJS3 - View or JP1/AJS2 - View to check their statuses or results. The following is a screenshot of the Monitor window.

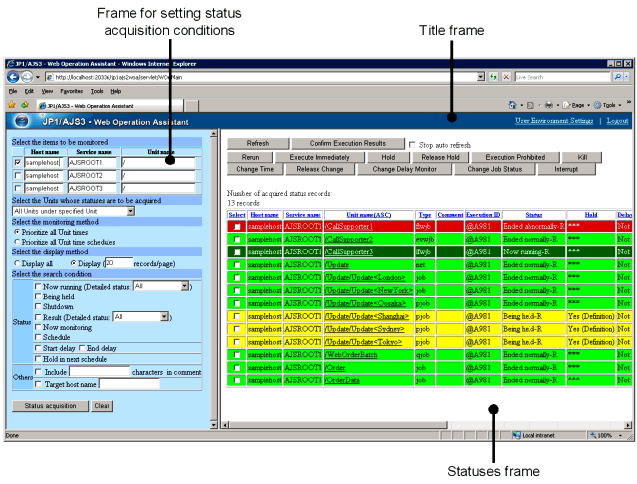

Figure 2-1 Screenshot of the Monitor window

The frame for setting status acquisition conditions may not appear, depending on the environment settings.
