Job Management Partner 1/Automatic Job Management System 3 - Web Operation Assistant Description, Operator's Guide and Reference

1.1 Usage objectives

The following programs can be used to monitor job and jobnet information:

JP1/AJS3 - View (or JP1/AJS2 - View)

JP1/AJS3 Console (or JP1/AJS2 Console)

However, these programs cannot display an overview of monitoring information for multiple managers simultaneously.

JP1/AJS3 - Web Operation Assistant provides a Web browser-based list view of monitoring information for multiple managers.

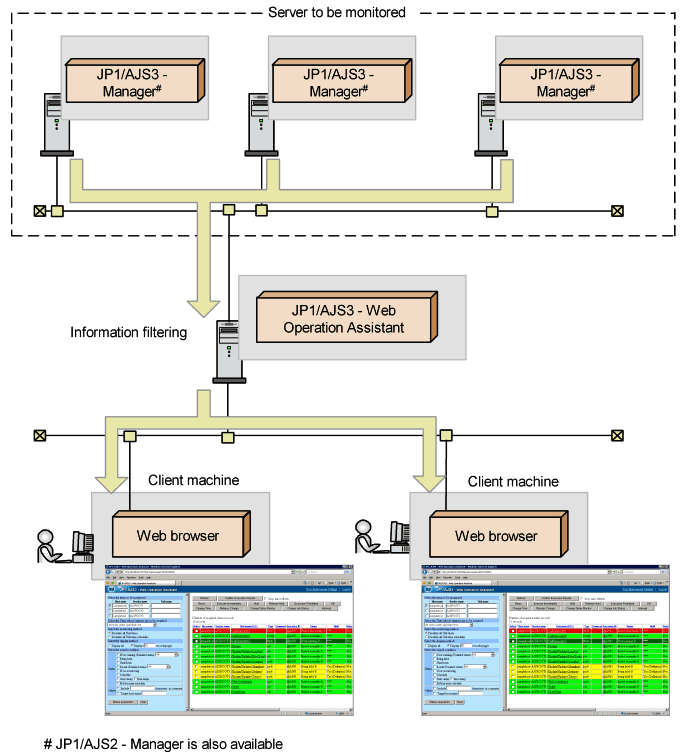

The following figure gives an overview of batch monitoring for multiple managers, with JP1/AJS3 - Web Operation Assistant.

Figure 1-1 Overview of batch monitoring with JP1/AJS3 - Web Operation Assistant

Information from multiple managers is filtered through the specified conditions, and the resulting list view is displayed on the client's Web browser.

This list view can also be used to perform operations such as re-execution for selected jobs and jobnets, and to start JP1/AJS3 - View or JP1/AJS2 - View, to check its status or results.

JP1/AJS3 - Web Operation Assistant is useful when you want to perform batch monitoring and operation of jobs and jobnets across multiple managers, via a Web browser-based interface.
