Job Management Partner 1/Automatic Job Management System 3 Linkage Guide
This section describes the setup for linking JP1/NQSEXEC to execute jobs.
The following figure shows an example of a system configuration for linking with JP1/NQSEXEC.

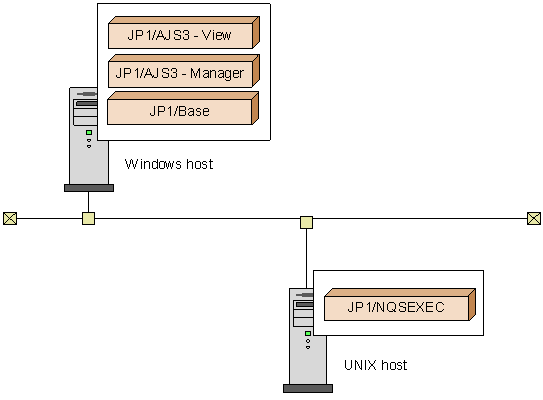

Figure 9-1 Example of a system configuration for linking with JP1/NQSEXEC
In this example, JP1/AJS3 - Manager is linked with JP1/NQSEXEC. JP1/AJS3 - Manager can use a QUEUE job, job execution command to issue a job execution request to JP1/NQSEXEC.
JP1/AJS3 - Manager can also receive an execution request issued by JP1/NQSEXEC.
The following figure shows the setup procedures for linking JP1/NQSEXEC.

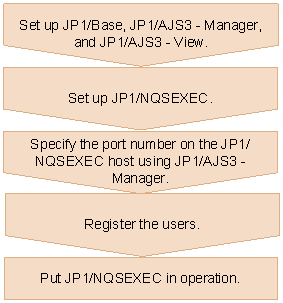

Figure 9-2 Setup procedures for linking JP1/NQSEXEC
For details on setting up JP1/NQSEXEC, see the Job Management Partner 1/NQSEXEC System Administrator's Guide.
The following subsections describe how to specify the port number and register the user information that are required for linking with JP1/AJS3.
- Organization of this section
- 9.2.1 Specifying the port number
- 9.2.2 Registering users
- 9.2.3 Cautionary note on linking JP1/NQSEXEC
