Job Management Partner 1/Automatic Job Management System 3 Linkage Guide

2.1.1 Overview of email reception

In Windows, an email reception monitoring job receives email via Outlook. Received messages are stored in the Inbox.

The email reception monitoring job monitors the Inbox, and compares any unread messages against the judgment conditions defined in the job.

The following figure shows an overview of email reception in Windows:

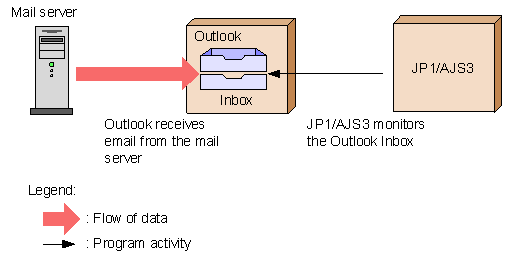

Figure 2-1 Overview of email reception (in Windows)

In UNIX, an email reception monitoring job receives email via sendmail. Received messages are stored in an internal email file.

The email reception monitoring job reviews the contents of the internal email file, and compares the messages in the file against the judgment conditions defined in the job.

The following figure shows an overview of email reception in UNIX:

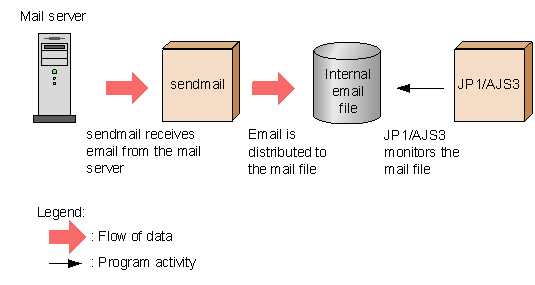

Figure 2-2 Overview of email reception (in UNIX)

For details on the internal email file, see 2.1.2 Behavior when receiving email.
