The following figure shows the Jobnet Monitor window.

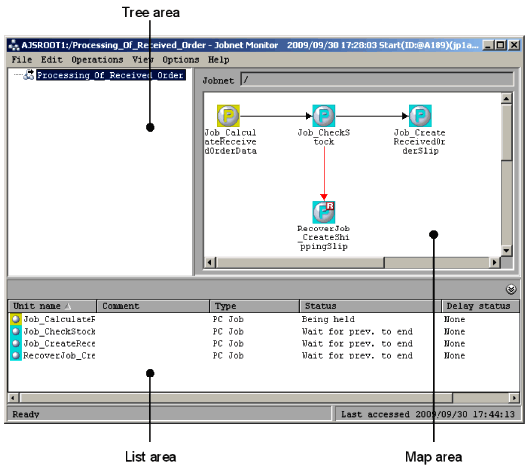

Figure 15-189 Jobnet Monitor window
The following explains the displayed items.
n Tree area
Hierarchically displays the jobnet being defined.
For a release target jobnet, the jobnet is displayed in the root-jobnet-name(release-ID) format for each definition for which release entry is performed. Note that the release ID is not displayed if the release ID is AJS_AUTO.
n Map area
Displays information on the jobnet selected in the tree area.
If you have chosen wallpaper for each unit from Set Wall Paper in the Options menu, or if you have set additional, customized wallpaper, it appears as a background image. For details, see 15.4.38 Wall Paper dialog box and 11.5.5 Changing the background image of the map area.
If you specify Selected for Unit name new line in the Editor/Monitor page of the Preferences dialog box, you can specify the line-feed location of the unit name.
If you have selected Yes for Display comments in the Editor/Monitor page of the Preferences dialog box, the comment set in the Define Details dialog box will also appear. For details, see 15.3.36 Preferences dialog box.
- Jobnet
- Displays the relative or full name of the jobnet currently displayed in the map area. You can edit the file ajs2view_opt.conf in order to determine whether to display the relative or full name for the jobnet. For details, see 11.5 Customizing the Jobnet Editor window.
n List area
Lists the basic information about the units displayed in the map area. You can minimize the list area by clicking View, List Area, and then Minimum.
- Unit name
- Displays the icon and name of a unit. The icons are displayed in the colors corresponding to their status or result.
- Specify the colors for icons on the General page in the Preferences dialog box. For details, see 15.3.36 Preferences dialog box.
- Comment
- Displays the comment defined in the Define Details dialog box for the unit.
- Type
- Displays the type of the unit.
- Status
- Displays the execution status.
- Delay status
- Displays the delay status.
