15.4.33 Detailed Definition - [OpenView Status Report] dialog box

The Detailed Definition - [OpenView Status Report] dialog box defines the details on reporting a status to HP NNM.

This dialog box contains the items displayed in common, and also contains the following pages:

Organization of this subsection
(1) Items displayed in common
(2) Definition page
(3) Attributes page

(1) Items displayed in common

The following figure shows the items displayed in common.

Figure 15-157 Items displayed in common in the Detailed Definition - [OpenView Status Report] dialog box

[Figure]

The following explains the items displayed in common.

Unit name
Specify a unit name. Use a character string of up to 30 bytes. The default is OpenView-Status-Report.

Comment
Specify a comment for the unit. Use a character string of up to 80 bytes. The default is a blank.

Exec-agent
Specify the execution agent name or execution agent group name to be assigned the task of reporting a status to HP NNM. Use a character string of up to 255 bytes. The default is a blank.

Cautionary note
If you have selected Queueless Agent in Exec. service on the Attributes page, specify the name of an execution host.

(2) Definition page

The following figure shows the Definition page in the Detailed Definition - [OpenView Status Report] dialog box.

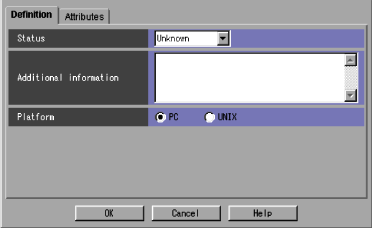

Figure 15-158 Definition page in the Detailed Definition - [OpenView Status Report] dialog box

[Figure]

The following explains the displayed items.

Status
Select the status you want to report to HP NNM. The default is Unknown. You can select the following items.
  • Unknown
  • Normal
  • Warning
  • Minor
  • Major
  • Critical
  • Restricted
  • Testing
  • Disabled

Additional Information
Specify additional information on the message. Use a character string of up to 256 bytes. You can use a macro variable. The default is a blank.

Platform
Select the platform on which you want to execute jobs. You can select PC or UNIX. The default is PC.
  • PC
    A Windows environment is used.
  • UNIX
    A UNIX environment is used.

(3) Attributes page

The following figure shows the Attributes page in the Detailed Definition - [OpenView Status Report] dialog box.

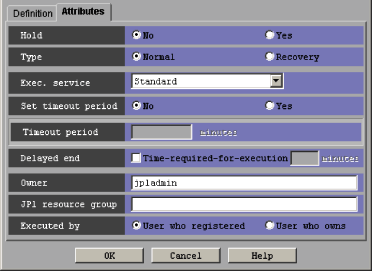

Figure 15-159 Attributes page in the Detailed Definition - [OpenView Status Report] dialog box

[Figure]

The following explains the displayed items.

Hold
Specify whether to place the unit in the hold status in advance. You can specify No or Yes. The default is No.

Type
Set the unit type to Normal or Recovery. The default is Normal.

Exec. service
Select the target service. You can specify Standard or Queueless Agent. The default is Standard. Note that this text box appears for connection target JP1/AJS3 - Manager, or JP1/AJS2 - Manager 07-00-/C or later.

Set timeout period
Select whether to set a time-out period for job execution. You can specify No or Yes. The default is No.

Timeout period
If you select Yes in Set timeout period, specify a time-out period in minutes. You can set 1 to 1,440 minutes. The default is a blank.

Delayed end
Specify whether to monitor delayed end of jobs based on time required for execution. Select the Time-required-for-execution check box to monitor delayed end of jobs. The check box is not selected by default.
When you select the Time-required-for-execution check box, specify the time required for execution for a job from 1 to 1,440 (in minutes).
This section appears for the JP1/AJS3 - View, or JP1/AJS2 - View of version 08-50 or later. For details about cautionary notes on monitoring of delayed end of jobs based on time required for execution, see 5.1(3) End delay monitoring based on time-required-for-execution in the Job Management Partner 1/Automatic Job Management System 3 System Design (Work Tasks) Guide.

Owner
Specify the owner of the unit. Use a character string of up to 31 bytes. The default is the login JP1 user name.

JP1 resource group
Specify a JP1 resource group name. Use a character string of up to 63 bytes. You can specify alphanumeric characters and underscores (_). The default is the JP1 resource group name of the upper-level unit. If you specify a blank, you are not authorized to access this group.

Executed by
Select the user who executes the job. The default is User who registered. You can select the following items.
  • User who registered
    The JP1 user who registered the job executes the job.
  • User who owns
    The JP1 user who owns the job executes the job.
