Job Management Partner 1/Automatic Job Management System 3 Operator's Guide

15.4.25 Detailed Definition - [Interval Control] dialog box

The Detailed Definition - [Interval Control] dialog box defines the details on execution interval control.

This dialog box contains the items displayed in common, and also contains the following pages:

Definition page

Attributes page

Organization of this subsection

(1) Items displayed in common

(2) Definition page

(3) Attributes page

(1) Items displayed in common

The following figure shows the items displayed in common.

Figure 15-139 Items displayed in common in the Detailed Definition - [Interval Control] dialog box

The following explains the items displayed in common.

Unit name

Specify a unit name. Use a character string of up to 30 bytes. The default is Interval-Control.

Comment

Specify a comment for the unit. Use a character string of up to 80 bytes. The default is a blank.

Exec-agent

Specify the execution agent name to be assigned the task of controlling an execution interval. Use a character string of up to 255 bytes. The default is a blank.

Cautionary note

If you leave this text box blank, the system inherits the specification of the upper-level jobnet.

If an execution agent group for an upper-level jobnet has been specified, the system uses the execution agent group as the execution agent.

Because event jobs do not support an execution agent group, explicitly specify an execution agent name in Exec-agent. For details about the operation performed if an execution agent group is specified for an event job, see 7.6 Notes on using event jobs in the Job Management Partner 1/Automatic Job Management System 3 System Design (Work Tasks) Guide.

Pass Info button

Specify information to be inherited by the subsequent job or jobnet. If you click the Pass Info button, the Detailed Definition - [Interval Control] - [Passing Information] dialog box appears. For more information, see 15.4.15 Detailed Definition - [event-job-icon-name] - [Passing Information] dialog box. This button is at the bottom of the dialog box.

(2) Definition page

The following figure shows the Definition page in the Detailed Definition - [Interval Control] dialog box.

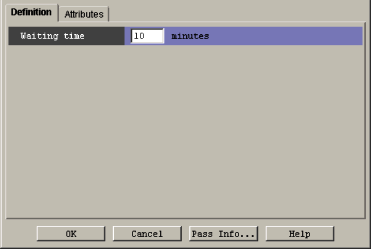

Figure 15-140 Definition page in the Detailed Definition - [Interval Control] dialog box

The following explains the displayed items.

Waiting time

Specify the wait time in minutes. You can set 1 to 1,440 minutes. The default is 10 minutes. You cannot omit this item.

(3) Attributes page

The following figure shows the Attributes page in the Detailed Definition - [Interval Control] dialog box.

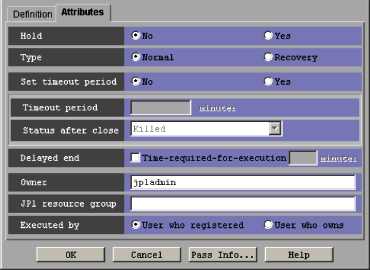

Figure 15-141 Attributes page in the Detailed Definition - [Interval Control] dialog box

The following explains the displayed items.

Hold

Specify whether to place the unit in the hold status in advance. You can specify No or Yes. The default is No.

Type

Set the unit type to Normal or Recovery. The default is Normal.

Set timeout period

Select whether to set a time-out period for job execution. You can specify No or Yes. The default is No.

Timeout period

If you select Yes in Set timeout period, specify a time-out period in minutes. You can set 1 to 1,440 minutes. The default is a blank.

Status after close

If you select Yes for Set timeout period, select the status into which the event job is to be placed after the timeout period elapses. You can specify Killed, Ended normally, Ended with warning, and Ended abnormally. The default is Killed.

Delayed end

Specify whether to monitor delayed end of jobs based on time required for execution. Select the Time-required-for-execution check box to monitor delayed end of jobs. The check box is not selected by default.

When you select the Time-required-for-execution check box, specify the time required for execution for a job from 1 to 1,440 (in minutes).

This section appears for the JP1/AJS3 - View, or JP1/AJS2 - View of version 08-50 or later. For details about cautionary notes on monitoring of delayed end of jobs based on time required for execution, see 5.1(3) End delay monitoring based on time-required-for-execution in the Job Management Partner 1/Automatic Job Management System 3 System Design (Work Tasks) Guide.

Owner

Even if you specify the owner, the owner will become invalid when the event job is executed.

JP1 resource group

Even if you specify the JP1 resource group, the JP1 resource group will become invalid when the event job is executed.

Executed by

Even if you specify the user who executes the job, the user will become invalid when the event job is executed. The system uses the user authority activating JP1/AJS3 to execute the event job.
