15.4.15 Detailed Definition - [event-job-icon-name] - [Passing Information] dialog box

The Detailed Definition - [event-job-icon-name] - [Passing Information] dialog box specifies information to be inherited by the subsequent job or jobnet. The event-job-icon-name varies with the dialog box in which you click the Pass Info button.

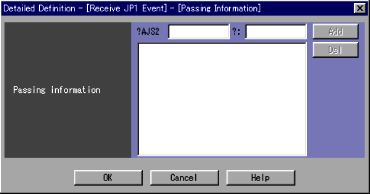

The following figure shows the Detailed Definition - [event-job-icon-name] - [Passing Information] dialog box.

Figure 15-116 Detailed Definition - [event-job-icon-name] - [Passing Information] dialog box

The following explains the displayed items.

Passing information

Specify information to be inherited. The default is a blank. For inherited information, defined data is stored in the format of jpoif=?macro-variable-name?:value;. You can specify multiple pieces of information that consist of up to 2,048 bytes in the format of jpoif=?macro-variable-name?:value;.

In the Detailed Definition - [event-job-icon-name] - [Passing Information] dialog box, you specify only the parts of macro-variable-name and value excluding ?AJS2 and ?:.

Specify ?macro-variable-name?. Use a character string of up to 64 bytes consisting of uppercase alphabetic characters (A to Z), numeric characters (0 to 9), and periods (.).

For details of information you can specify for value, see A. Information Passed by Event Jobs in the manual Job Management Partner 1/Automatic Job Management System 3 Overview.

If you click the Add button, this item is added to the list.

Supplementary note

If you have defined multiple pieces of inherited information in the same macro variable name, the first defined information is inherited.
