Job Management Partner 1/Automatic Job Management System 3 Operator's Guide
The Define Details - [OR Job] dialog box defines the details of an OR job.
This dialog box contains the items displayed in common, and also contains the following page:
- Attributes page
- Organization of this subsection
- (1) Items displayed in common
- (2) Attributes page
(1) Items displayed in common
The following figure shows the items displayed in common.
Figure 15-103 Items displayed in common in the Define Details - [OR Job] dialog box
The following explains the displayed items.
- Unit name
- Specify a unit name. Use a character string of up to 30 bytes. The default is OR-Job.
- Comment
- Specify a comment for the unit. Use a character string of up to 80 bytes. The default is a blank.
- Exec-agent
- You cannot specify this item for OR jobs.
(2) Attributes page

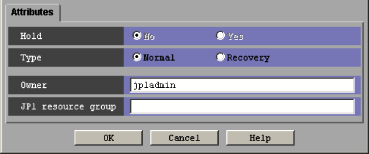

The following figure shows the Attributes page in the Define Details - [OR Job] dialog box.
Figure 15-104 Attributes page in the Define Details - [OR Job] dialog box
The following explains the displayed items.
- Hold
- You cannot select this item for OR jobs.
- Type
- Set the unit type to Normal or Recovery. You can specify this when all the preceding and subsequent jobs are set to Recovery. The default is Normal.
- Owner
- Specify the owner of the unit. Use a character string of up to 31 bytes. The default is the login JP1 user name.
- JP1 resource group
- Specify a JP1 resource group name. Use a character string of up to 63 bytes. You can specify alphanumeric characters and underscores (_). The default is the JP1 resource group name of the upper-level unit. If you specify a blank, you are not authorized to access this group.
