Job Management Partner 1/Automatic Job Management System 3 Operator's Guide
The Add dialog box (for a root jobnet) sets the start time of a fixed execution schedule for a root jobnet. The following figure illustrates the Add dialog box.

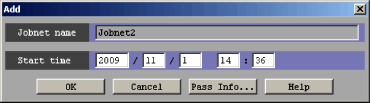

Figure 15-52 Add dialog box (for a root jobnet)
The following explains the displayed items.
- Jobnet name
- Displays the name of the root jobnet to which a start time is to be added.
- Start time
- Specify the start time of a fixed schedule. The following table lists the values you can set, and the defaults.
Table 15-14 Specifiable values and defaults
No. Time Specifiable value Default 1 Year 1994 to 2036 Current year 2 Month 1 to 12 Current month 3 Day 1 to 31 (Number of days in the month) Current day 4 Hours 0 to 47 Current hour
A blank for the Monthly Schedule window5 Minutes 0 to 59 Current minutes
A blank for the Monthly Schedule window
- Pass Info button
- When the Passing Information dialog box appears, you can specify the information passed at the time of registration for execution. For details, see 15.3.19 Passing Information dialog box.
