Job Management Partner 1/Automatic Job Management System 3 Operator's Guide
The Passing Information dialog box lists all items of passing information for the unit selected to be registered for execution. The following figure shows the Passing Information dialog box.

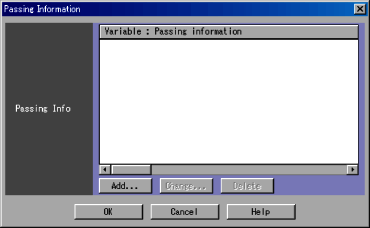

Figure 15-46 Passing Information dialog box
The following explains the displayed items.
- Passing Info
- All items of passing information for the unit selected to be registered for execution are listed in the format of ?AJS2xxx?:yyy, where xxx is the macro variable name and yyy is the passing information.
- You can register a maximum of 32 items of passing information, although you cannot register the same variable name more than once.
- Add button
- Clicking the Add button displays the Register Passing Information dialog box, in which you can add passing information. For details, see 15.3.20 Register Passing Information dialog box.
- Change button
- Clicking the Change button displays the Register Passing Information dialog box, in which you can change passing information. For details, see 15.3.20 Register Passing Information dialog box.
- Delete button
- You can select and delete items from the list of items of passing information.
