Job Management Partner 1/Automatic Job Management System 3 Operator's Guide

15.3.21 Variables Used dialog box

The Variables Used dialog box lists all variables used in a particular job. The following figure shows the Variables Used dialog box.

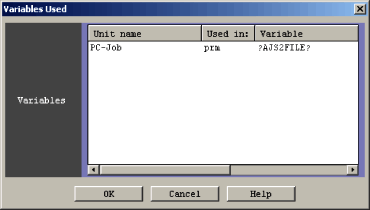

Figure 15-48 Variables Used dialog box

The following explains the displayed items.

Variables

Provides a list of variable names used in the jobs defined under the target root jobnet. It does not display the jobs under the remote jobnet.

Multiple variables in a single definition item are displayed on more than one line. The same also applies when one particular variable is repeated in a single definition item.

Select an item from a displayed list of items and click the OK button to set a macro variable name in Variable in the Register Passing Information dialog box on the calling side.

Unit name

The job name is displayed in the form of a relative path from the root jobnet.

For example, nest/job is displayed when the full path name of the root jobnet is /root and the full path name of the job is /root/nest/job.

If an operation covers multiple selected root jobnets, the name of the root jobnet itself is also displayed.

Used in

Where to use a variable name is displayed by the keyword for the unit definition parameter. For details about the unit definition parameter, see 4.2 Definition format and parameters in the manual Job Management Partner 1/Automatic Job Management System 3 Command Reference 2.

Variable

The variable name is displayed in the format of ?AJS2XXX?.
