15.3.9 Define Details - [Jobnet] dialog box (for a nested jobnet)

The Define Details - [Jobnet] dialog box (for a nested jobnet) defines the details about a nested jobnet.

This dialog box contains the items displayed in common, and also contains the following pages:

Definition page

Attributes page

Organization of this subsection

(1) Items displayed in common

(2) Definition page

(3) Attributes page

(1) Items displayed in common

The following figure shows the items displayed in common.

Figure 15-18 Common displayed items in the Define Details - [Jobnet] dialog box (for a nested jobnet)

The following explains the items displayed in common.

Unit name

Specify a unit name. Use a character string of up to 30 bytes. The default is a blank.

Comment

Specify a comment for the unit. Use a character string of up to 80 bytes. The default is a blank.

Exec-agent

Specify the execution agent name or execution agent group name to be assigned the task of job execution. Use a character string of up to 255 bytes. If you omit the Exec-agent for a job in a jobnet, the system uses this value. If this value is also omitted, the system uses the value of the upper-level jobnet.

(2) Definition page

The following figure shows the Definition page in the Define Details - [Jobnet] dialog box (for a nested job).

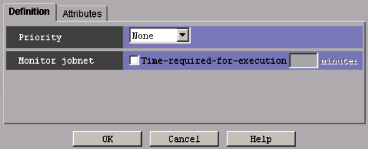

Figure 15-19 Definition page in the Define Details - [Jobnet] dialog box (for a nested job)

The following explains the displayed items.

Priority

Specify the priority of a job. You can set None, or 1 to 5. The highest priority is 5. The default is None. If you set None for the priority of a job in a jobnet, the system uses the priority of the upper-level jobnet. The system uses this value if you set None for the priority of a job in a jobnet. Specifying None for all the upper-level jobnets (up to the highest one) causes the job's priority to be handled as 1.

In UNIX, if non-root users execute jobs resulting from mapping, specifying the value of 4 or 5 will result in an authority error at the time of job execution.

Monitor jobnet

When using jobnet execution time to monitor the end delay of the jobnet, select Time-required-for-execution and specify the required jobnet execution time in minutes. You can specify 1 to 2,879. In the default mode, Time-required-for-execution is not selected

(3) Attributes page

The following figure shows the Attributes page in the Define Details - [Jobnet] dialog box (for a nested job).

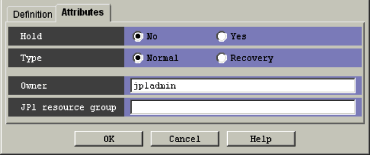

Figure 15-20 Attributes page in the Define Details - [Jobnet] dialog box (for a nested job)

The following explains the displayed items.

Hold

Specify whether to place the unit in the hold status in advance. You can specify No or Yes. The default is No.

Type

Set the unit type to Normal or Recovery. The default is Normal.

Owner

Specify the owner of the unit. Use a character string of up to 31 bytes. The default is the login JP1 user name.

JP1 resource group

Specify a JP1 resource group name. Use a character string of up to 63 bytes. You can specify alphanumeric characters and underscore (_). The default is the JP1 resource group name of the upper-level unit. If you set a blank, you are not authorized to access this group.
