11.1.3 Example of a system configuration when using JP1/AJS3 Console in a cluster system

JP1/AJS3 Console is also available in a cluster system. When JP1/AJS3 Console Manager is used in a cluster configuration, you can continue monitoring work tasks by using failover if an error occurs on the JP1/AJS3 Console Manager host. You can also monitor work tasks that are managed by JP1/AJS3 - Manager on a logical host.

You operate a logical host in a cluster system as if you were operating a single server.

To use JP1/AJS3 Console Manager on a logical host, in the Host to connect in the Login screen of JP1/AJS3 Console View, specify the host name or IP address of the logical host. To monitor work tasks managed by JP1/AJS3 - Manager on a logical host, use the Define Details - AJS3 Unit Monitored Object dialog box of JP1/AJS3 Console View. In this dialog box, specify the host name or IP address of the logical host in the Host name for Object to monitor.

Only one JP1/AJS3 Console Manager service or JP1/AJS3 Console Agent service is assigned on a machine. However, these services are available in a cluster system because separate processing on each logical host is enabled by using the cluster software to move the shared disk and the logical IP address. The following figures show the operation of each JP1/AJS3 Console service on a logical host.

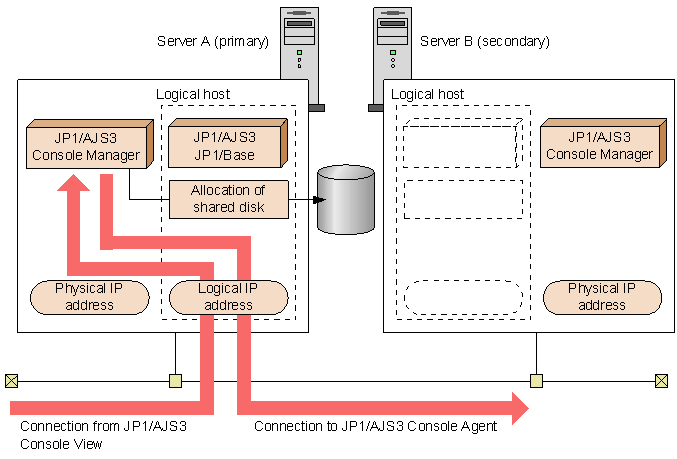

Figure 11-2 Operation of JP1/AJS3 Console Manager on a logical host

[Figure]

Figure 11-3 Operation of JP1/AJS3 Console Agent on a logical host

[Figure]
