3.1.3 Creating a job flow

A job flow is easy to create in the Jobnet Editor window of JP1/AJS3 - View.

In the Jobnet Editor window, you can easily create a job flow simply by linking jobs with arrows called relations. For details on JP1/AJS3 - View operations, see 5. Defining Jobnets in the Job Management Partner 1/Automatic Job Management System 3 Operator's Guide.

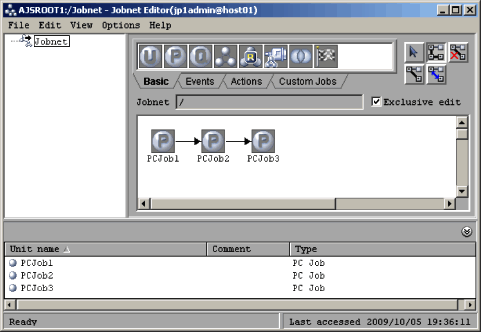

Figure 3-14 Example of creating a job flow in the Jobnet Editor window

A variety of job flows can be created, depending on how the jobs are sequenced and inter-related. Some examples of job flow creation are provided below.

n Single processing path

Job 1, Job 2, and Job 3 are executed sequentially in a single processing path. The job flow is created as follows:

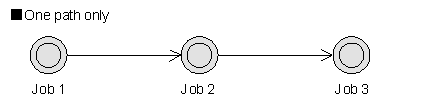

Figure 3-15 Job flow in a single path

n Multiple processing paths

The following figure shows an example of creating a job flow in multiple processing paths.

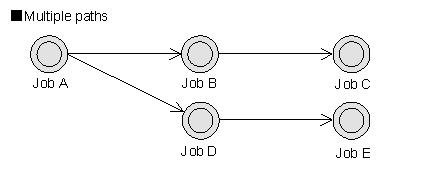

Figure 3-16 Job flow in multiple paths

When Job A is executed, the processing branches into two paths: Job A -- Job B -- Job C, and Job A -- Job D -- Job E.

n Nested jobnet

You can use nested jobnets in a job flow. Examples of using nested jobnets are shown below.

Nesting a jobnet

The following figure shows an example of nesting a jobnet within the job flow.

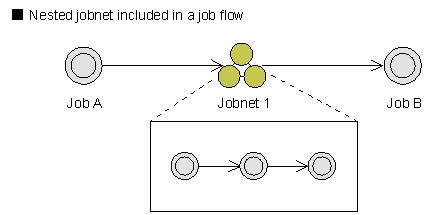

Figure 3-17 Example of using nesting a jobnet

When Job A completes execution, the jobs defined in Jobnet 1 are executed. When processing of Jobnet 1 is finished, Job B is executed.

Grouping multiple jobs

The following figure shows an example of grouping multiple jobs into nested jobnets.

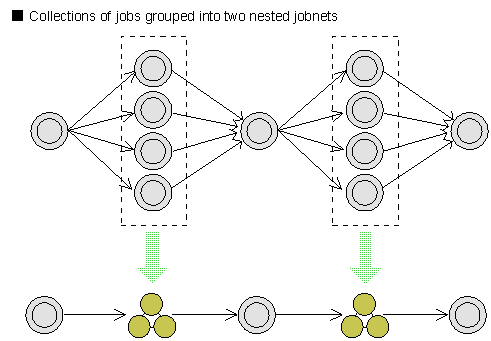

Figure 3-18 Example of grouping multiple jobs into nested jobnets

Joining two paths

Using a nested jobnet, you can join two processing paths into a single path.

The following figure shows an example of joining the paths Daily process 1 -- Daily process 2, and Daily process 1 -- Monthly process -- Daily process 2, into one flow.

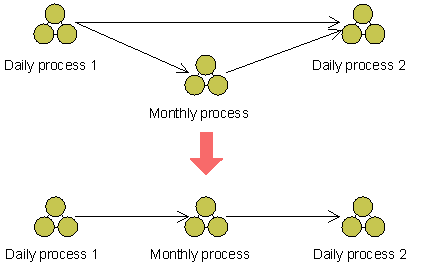

Figure 3-19 Joining jobnets into one flow

Because the two daily processes are executed every day and the monthly process is executed only once a month, JP1/AJS3 will skip any jobnet not scheduled for a particular day. This means that the two paths can be joined into one path.

n Sequencing jobs in different jobnets

In principle, JP1/AJS3 does not support job sequencing across jobnets. If you wish to sequence jobs from different jobnets, you must either split the jobnets or integrate the jobs from the two jobnets into a single jobnet, in either of the ways shown below:

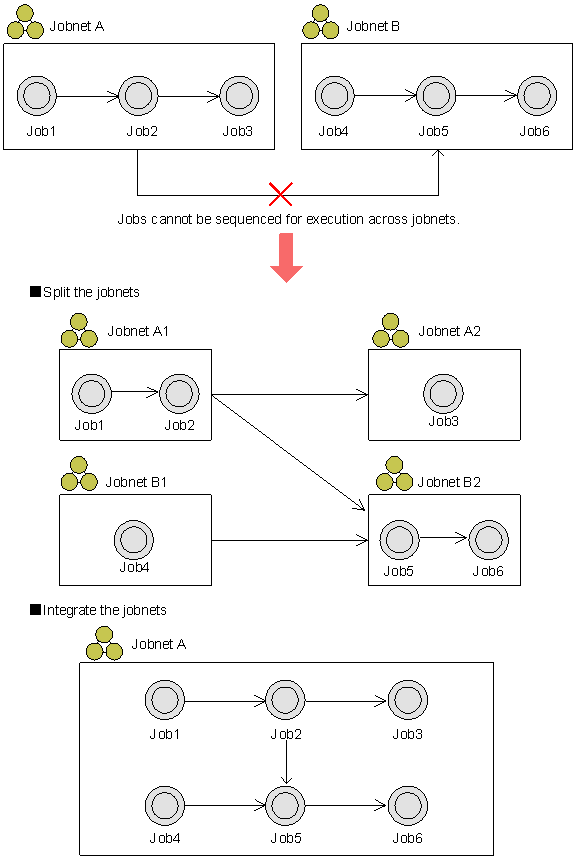

Figure 3-20 Ways of sequencing jobs in different jobnets
