3.1.2 Building a jobnet

The jobnet definition flow for automating applications in JP1/AJS3 is as follows:

Create a job group as required.

Create a jobnet.

Create the jobs.

Sequence the created jobs as required.

Set a start condition for the jobnet as required.

For details on setting a start condition, see 3.4 Defining a start condition.

In JP1/AJS3, operations such as scheduling, execution, and management are performed in application units, that is, by root jobnet. For this reason, the jobnets will be easier to manage as a whole if you have some criteria in mind when grouping processes into jobnets.

Below, we provide some examples of jobnet creation to illustrate how to group processes into a jobnet.

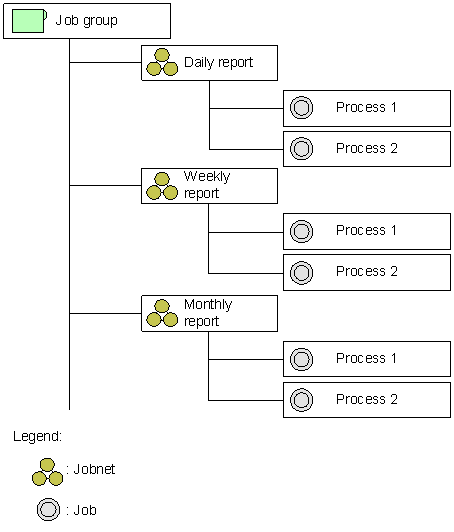

Example of management by application category

This example builds a jobnet of related applications. An application-based jobnet allows jobs to be easily added, changed, or deleted whenever required.

The following figure shows an example of management by application category.

Figure 3-11 Example of management by application category

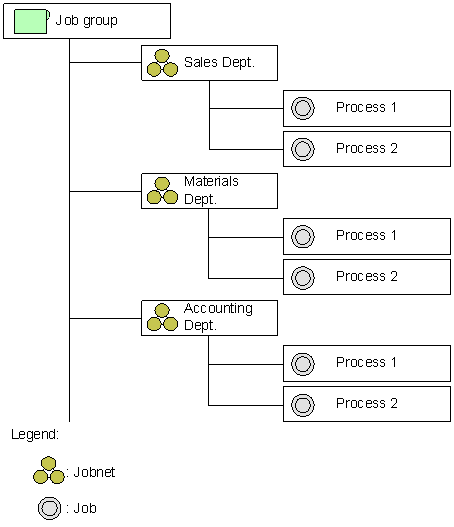

Example of management by department

This example builds a jobnet categorized by department. A departmental jobnet facilitates overall jobnet management and prevents operators in other departments from accessing the wrong applications.

The following figure shows an example of management by department.

Figure 3-12 Example of management by department

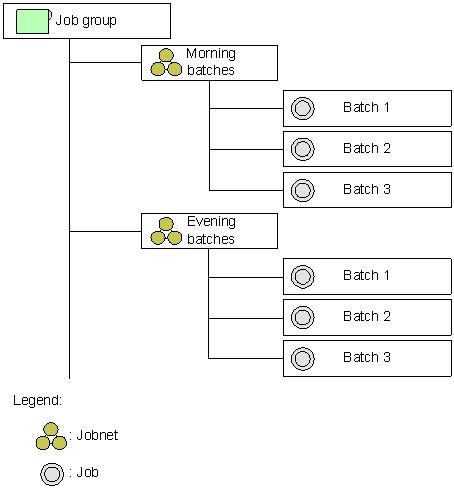

Example of management by processing category

This example builds a jobnet by processing unit. With a processing-based jobnet, there is no need for complex scheduling or structuring into hierarchical levels.

The following figure shows an example of management by processing category.

Figure 3-13 Example of management by processing category

If you are using commands to operate on jobnets, it would be best to use lower-case alphanumeric characters when setting names to allow for the use of regular expressions.
