Job Management Partner 1/Integrated Management - Event Gateway for Network Node Manager i Description, User's Guide and Reference

3.1 Environment setup procedure

Use of JP1/IM - EG for NNMi in a cluster system is supported. When you use JP1/IM - EG for NNMi in a cluster system, processing can be inherited from the primary node to the secondary node in the event of a server failure.

If you intend to run JP1/IM - EG for NNMi in a cluster system, make sure in advance that operation of JP1/IM - EG for NNMi is supported by your cluster software.

This section describes the environment setup procedure for running JP1/IM - EG for NNMi in a cluster system.

You must have Administrator permissions in Windows and superuser permissions in UNIX in order to perform the installation and setup procedures.

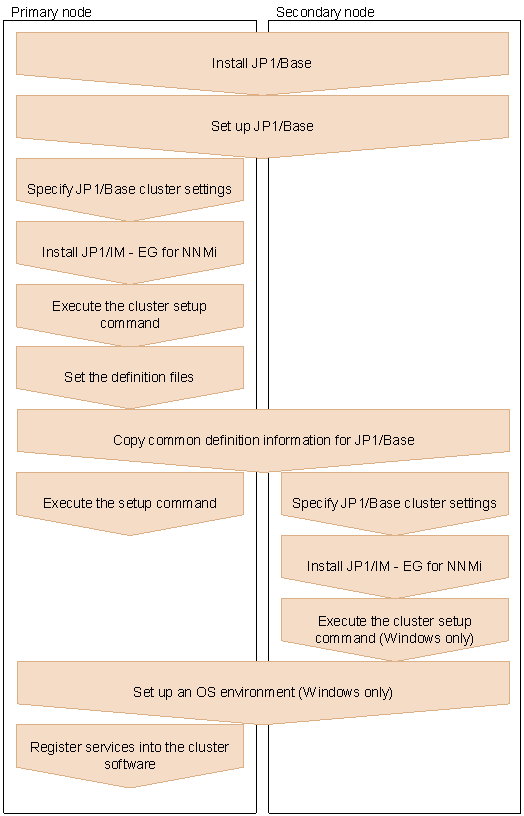

Figure 3-1 Environment setup procedure (cluster operation)

Installing JP1/Base

For details about how to install and set up JP1/Base and how to specify cluster settings, see the Job Management Partner 1/Base User's Guide.

Installing NNMi

For details about how to install NNMi, see the documentation for the applicable NNMi product.

You can install NNMi at any time; however, you will need certain NNMi settings when you set up JP1/IM - EG for NNMi. For details about the NNMi settings that will be required during setup, see Table 2-1 NNMi settings required during setup in 2.1 Installation and setup procedures.
