Job Management Partner 1/Integrated Management - Manager GUI Reference

4.8 Execution Results window

The Execution Results window is used to list messages related to the application of information or the result of collection.

The following figure shows an example of the Execution Results window.

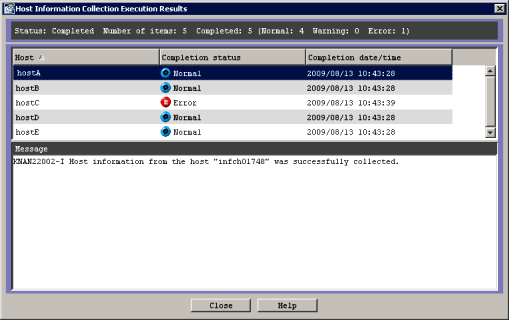

Figure 4-20 Execution Results window

The following table describes the items displayed in the Execution Results window.

Table 4-28 Items displayed in the Execution Results window

Item Description

Host The name of a host on which an operation was executed.
Example: HostA

Completion status One of the following completion statuses:

Normal

Warning

Error

Completion date/time The date and time that the processing was completed.
Example: 2008/01/01 12:24:31

Message List of the messages related to the selected host.
Example: KNAN22017-E Collection of host information failed because a connection could not be established with the host "hostA".

Stop/Close button

Clicking the Stop button cancels the processing currently being executed.

When the processing ends, the Stop button changes to the Close button.

Clicking the Close button closes the Execution Results window.

Help button

Displays Help.

Item	Description
Host	The name of a host on which an operation was executed. Example: HostA
Completion status	One of the following completion statuses: Normal Warning Error
Completion date/time	The date and time that the processing was completed. Example: 2008/01/01 12:24:31
Message	List of the messages related to the selected host. Example: KNAN22017-E Collection of host information failed because a connection could not be established with the host "hostA".
