Job Management Partner 1/Integrated Management - Manager GUI Reference

4.1 IM Configuration Management window

The IM Configuration Management window is used to display and edit the hierarchical structure of the system managed by IM Configuration Management and the list of registration hosts. When the user logs in to IM Configuration Management - View (IM Configuration Management), the IM Configuration Management window appears.

The IM Configuration Management window has two pages: Host List and IM Configuration. Each page can be opened by choosing the corresponding tab. For details about the Host List page, see 4.1.1 Host List page. For details about the IM Configuration page, see 4.1.2 IM Configuration page.

Note that if different versions of IM Configuration Management - View and IM Configuration Management are connected, the display items in the window might be different from those described in this document or might be disabled. For details about the differences in window display, see H. Connectivity with Previous Versions in the Job Management Partner 1/Integrated Management - Manager Overview and System Design Guide.

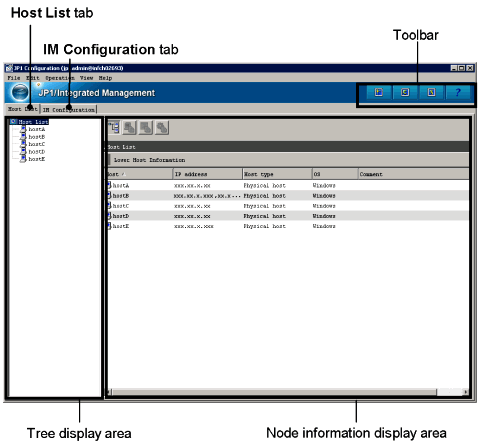

The following figure shows an example of the IM Configuration Management window.

Figure 4-1 IM Configuration Management window

Toolbar

Provides buttons for executing functions that are frequently used in the IM Configuration Management window

(Refresh)

Refreshes the information displayed in the tree display area.

(Central Console)

Opens the Central Consol window.

(Central Scope)

Opens the Central Scope window.

(Help button)

Displays Help.

Host List tab

Clicking the Host List tab opens the Host List page. On the Host List page, the hosts registered in the hierarchical structure of the system are listed in the tree display area. If the user selects a host or a virtual host from the tree display area, detailed information about the selected host is displayed in the node information display area.

IM Configuration tab

Clicking the IM Configuration tab opens the IM Configuration page. On the IM Configuration page, the hierarchical structure of the system is displayed in the tree display area. If the user selects a manager or an agent in the tree display area, detailed information about the selected manager or agent is displayed in the node information display area.

Display items

The user can show or hide a display item in the node information display area by right-clicking the item and selecting or deselecting the item on the menu. Selecting a display item on the menu displays it (a check mark appears). Deselecting a display item on the menu hides it (the check mark disappears). A display item whose check mark is gray cannot be deselected.

The following table describes the menu items available from the menu bar of the IM Configuration Management window.

Table 4-1 Menu items available from the menu bar of the IM Configuration Management window

Menu Command Description

File Exit, Logout Lets the user log out from the connected JP1/Integrated Management - Manager (IM Configuration Management), and closes open windows.

Edit Register Host Displays the Register Host window.

Delete Host Deletes the selected host. Multiple hosts can be deleted at one time.

Edit Host Properties Displays the Edit Host Properties window. The registration information for the host selected in the IM Configuration Management window can be edited.

Edit IM Configuration Displays the Edit IM Configuration window. The configuration definition information can be edited.

Operation Collect Host Information Collects information about the selected host. If the user selects multiple hosts, the Execution Results window appears.

Collect IM Configuration Acquires the configuration definition information in effect in the system.

Synchronize IM Configuration Synchronizes the IM configuration information between the upper-level manager and the lower-level manager.

Verify IM Configuration Compares the configuration definition information of the manager and of the agent to check for whether they match. A message indicating that processing is in progress appears in the Execution Results window.

Batch Collect Profiles Collects the profiles in a batch operation. A message indicating that processing is in progress appears in the Execution Results window.

Batch Reflect Profiles Applies the profiles in a batch. A message indicating that processing is in progress appears in the Execution Results window.

Launch Base View Displays IM Configuration Management - View of the base manager.

Display Display Profiles Displays the Display/Edit Profiles window.

Login User List Displays the Login User List window.

Central Console Displays the Central Console viewer.

Central Scope Displays the Central Scope viewer.

Display Configuration Status Unknown Icon Specifies whether to display configuration status unknown icons. The default is to display the icons.

Refresh Refreshes the information displayed in the IM Configuration Management window.

Help Help Displays Help.

Help Contents Displays the Help contents.

About JP1/IM - View Displays the version information of IM Configuration Management - View.

Organization of this section

4.1.1 Host List page

4.1.2 IM Configuration page

Menu	Command	Description
File	Exit, Logout	Lets the user log out from the connected JP1/Integrated Management - Manager (IM Configuration Management), and closes open windows.
Edit	Register Host	Displays the Register Host window.
Delete Host	Deletes the selected host. Multiple hosts can be deleted at one time.
Edit Host Properties	Displays the Edit Host Properties window. The registration information for the host selected in the IM Configuration Management window can be edited.
Edit IM Configuration	Displays the Edit IM Configuration window. The configuration definition information can be edited.
Operation	Collect Host Information	Collects information about the selected host. If the user selects multiple hosts, the Execution Results window appears.
Collect IM Configuration	Acquires the configuration definition information in effect in the system.
Synchronize IM Configuration	Synchronizes the IM configuration information between the upper-level manager and the lower-level manager.
Verify IM Configuration	Compares the configuration definition information of the manager and of the agent to check for whether they match. A message indicating that processing is in progress appears in the Execution Results window.
Batch Collect Profiles	Collects the profiles in a batch operation. A message indicating that processing is in progress appears in the Execution Results window.
Batch Reflect Profiles	Applies the profiles in a batch. A message indicating that processing is in progress appears in the Execution Results window.
Launch Base View	Displays IM Configuration Management - View of the base manager.
Display	Display Profiles	Displays the Display/Edit Profiles window.
Login User List	Displays the Login User List window.
Central Console	Displays the Central Console viewer.
Central Scope	Displays the Central Scope viewer.
Display Configuration Status Unknown Icon	Specifies whether to display configuration status unknown icons. The default is to display the icons.
Refresh	Refreshes the information displayed in the IM Configuration Management window.
Help	Help	Displays Help.
Help Contents	Displays the Help contents.
About JP1/IM - View	Displays the version information of IM Configuration Management - View.
