2.15 Common Exclusion-Conditions Settings window

The Common Exclusion-Conditions Settings window is used to set the event acquisition filter conditions (the conditions for acquiring events from the event service).

Any of the following operations displays the Common Exclusion-Conditions Settings window:

In the System Environment Settings window, the user selects an item from the Common exclusion-conditions groups list, and then clicks the Configure button.

In the Event Acquisition Conditions List window, the user clicks the Add button in the Common exclusion-conditions groups area.

In the Event Acquisition Conditions List window, the user selects an item from the Common exclusion-conditions groups list, and then clicks the Edit button.

Note that the user must have JP1_Console_Admin permission to display the System Environment Settings window.

When the user specifies common exclusion conditions and then clicks the OK button in this window, the specified conditions are converted into a filter condition statement. The statement takes effect when the Apply button is clicked in the System Environment Settings window. The maximum length of the common exclusion-conditions group is 64 KB. If the exclusion condition statement is longer than the maximum length, an error dialog box displaying the message KAVB0246-E appears when the OK button is clicked. If the error dialog box appears, the filter condition settings must be reviewed. For details about how to estimate the length of a filter condition statement, see the Release Notes for JP1/IM - View.

When no conditions (items under Conditions) have been specified for the common exclusion-conditions group set in this window, if the common exclusion-conditions group is applied, no JP1 events will be displayed (acquired). At least one condition must be specified in order to filter events.

The following figure shows an example of the Common Exclusion-Conditions Settings window.

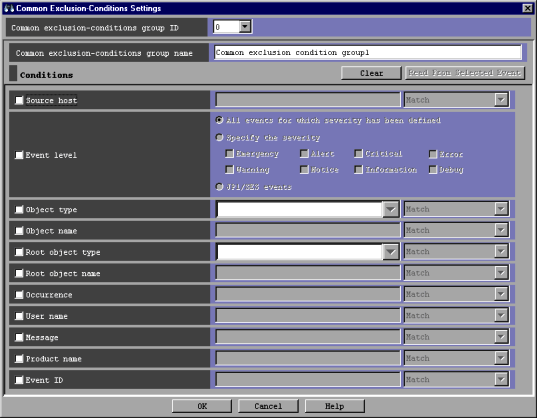

Figure 2-19 Common Exclusion-Conditions Settings window

The following describes the items displayed in the Common Exclusion-Conditions Settings window.

Common exclusion-conditions group ID

This drop-down list is used to select a common exclusion-conditions group ID.

If a new common exclusion-condition is being added, an unused filter ID in the common exclusion-condition group list is automatically assigned in ascending order.

If the window has been displayed for the purpose of editing the common exclusion-condition selected in the common exclusion-condition group list, the common exclusion-condition group ID is displayed in this text box.

Common exclusion-conditions group name

Specifies the name of a common exclusion-conditions group.

If the user selects an existing common exclusion-conditions group and specifies a new name, the name of the common exclusion-conditions group is replaced with the new name.

If the user attempts to specify an existing common exclusion-conditions group name, a message dialog box displaying the following message appears:

KAVB0256-E The specified condition group name already exists.

Clear

Clicking this button clears all condition settings displayed under Conditions.

Read From Selected Event

Clicking this button applies the attribute values of the JP1 event selected in the Event Console window to the corresponding items under Conditions. The following describes how the attribute values are applied:

When an event attribute value includes a control character (such as a linefeed or tab character)
The part before the first control character is applied. If an option condition can be specified for the event attribute, First characters is selected.

When an event attribute value does not include a control character
The entire event attribute value is applied. If an option condition can be specified for the event attribute, Match is selected.

If the information of the selected JP1 event is mapped in the Event-Information Mapping Definitions window, the attribute values for the display items and program-specific extended attribute values that have been mapped are not applied. For details about the Event-Information Mapping Definitions window, see 5.1.3 Displaying extended attributes of JP1 events in the Job Management Partner 1/Integrated Management - Manager Administration Guide.

Source host

Specifies the name of a host (event server name) that issues a JP1 event. Multiple host names require a comma as a separator. A maximum of 100 host names can be specified. If a character string that includes a comma (,) or backslash (\) is specified, a backslash (\) must be added before the comma (\,) or backslash (\\). A linefeed or tab character cannot be specified.

From the drop-down list on the right, the user selects a condition for the specified character strings from Match, Does not match, First characters, Is contained, Is not contained, and Regular expression.

Event level

Specifies the severity levels of the JP1 events to be acquired.

The user can acquire all events for which a severity level has been defined by selecting the Acquire all events for which severity has been defined radio button.

If the user wants to acquire only events for specific severity levels, the user can select the Specify the severity radio button and then select the check boxes for the desired severity levels from Emergency, Alert, Critical, Error, Warning, Notice, Information, and Debug.

If the user wants to acquire JP1/SES events, the user can select the JP1/SES events radio button.

Note that if the user enables the function for changing the severity level when the integrated monitoring database is used, the column header is displayed as Original severity level.

Object type

Specifies the object type of a JP1 event. The character string can be typed in the text box or selected from the drop-down list.

From the drop-down list on the right, the user selects a condition for the specified character string from Match, Does not match, First characters, Is contained, Is not contained, and Regular expression.

Object name

Specifies the object name of a JP1 event. Multiple object names require a comma as a separator. A maximum of 100 object names can be specified. If a character string that includes a comma (,) or backslash (\) is specified, a backslash (\) must be added before the comma (\,) or backslash (\\). A linefeed or tab character cannot be specified.

From the drop-down list on the right, the user selects a condition for the specified characters string from Match, Does not match, First characters, Is contained, Is not contained, and Regular expression.

Root object type

Specifies the root object type of a JP1 event. The root object type can be typed in the text box or selected from the drop-down list.

From the drop-down list on the right, the user selects a condition for the specified character string from Match, Does not match, First characters, Is contained, Is not contained, and Regular expression.

Root object name

Specifies the root object name of a JP1 event.

From the drop-down list on the right, the user selects a condition for the specified character string from Match, Does not match, First characters, Is contained, Is not contained, and Regular expression.

Occurrence

Specifies the occurrence type of a JP1 event.

From the drop-down list on the right, the user selects a condition for the specified character string from Match, Does not match, First characters, Is contained, Is not contained, and Regular expression.

User name

Specifies the user name of a JP1 event.

Multiple user names require a comma as a separator. A maximum of 100 user names can be specified. If a user name that includes a comma (,) or backslash (\) is specified, a backslash (\) must be added before the comma (\,) or backslash (\\). A linefeed or tab character cannot be specified.

From the drop-down list on the right, the user selects a condition for the specified character string from Match, Does not match, First characters, Is contained, Is not contained, and Regular expression.

Message

Specifies the message text of a JP1 event.

From the drop-down list on the right, the user selects a condition for the specified character string from Match, Does not match, First characters, Is contained, Is not contained, and Regular expression. The recommended option is First characters or Is contained. If Regular expression is selected, make sure that control characters used in the message text are not included in the expression.

Product name

Specifies the name of the program that issues a JP1 event.

From the drop-down list on the right, the user selects a condition for the specified character string from Match, Does not match, First characters, Is contained, Is not contained, and Regular expression.

Event ID

Specifies the event ID of a JP1 event. Multiple event IDs require a comma as a separator.

From the drop-down list on the right, the user selects a condition for the specified character strings from Match and Does not match.
