2.14 Event Acquisition Conditions List window

The Event Acquisition Conditions List window lists event acquisition filters. This window can be used to add, edit, copy, or delete an event acquisition filter.

This window is displayed when the user clicks the Editing list button in the System Environment Settings window.

The new settings specified in the Event Acquisition Conditions List window are saved when the user clicks the OK button in the Event Acquisition Conditions List window, and then clicks the Apply button in the System Environment Settings window.

If the Apply button is not clicked in the System Environment Settings window, the new settings are abandoned.

The maximum length of the event acquisition filter is 64 KB when exclusion-conditions groups or the common exclusion-conditions groups that are being applied have been set. When they have not been set, the maximum length is 60 KB. If the event acquisition filter is longer than the maximum length, an error dialog box displaying the message KAVB0246-E appears when the OK button is clicked. If the error dialog box appears, the filter condition settings must be reviewed. For details about how to estimate the length of a filter condition statement, see the Release Notes for JP1/IM - View.

The following figure shows an example of the Event Acquisition Conditions List window.

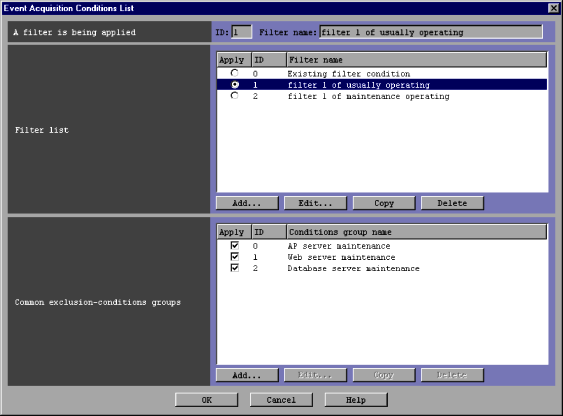

Figure 2-18 Event Acquisition Conditions List window

The following describes the items displayed in the Event Acquisition Conditions List window.

A filter is being applied

The ID and name of the event acquisition filter that is currently being applied are displayed.

Filter list

This area displays a list of event acquisition filters that have been created.

When the user selects and double-clicks an item in the list, the Event Acquisition Settings window opens so that the selected filter can be edited. The user can select only one item.

A maximum of 50 event acquisition filters can be registered in the filter list.

The user can sort the filter list by selection status (Apply column), by filter ID (ID column), or by filter name (Filter name column). Sorting is performed by clicking the corresponding column header. If the user clicks a column header once, the icon is displayed in the column header. If the user clicks the column header again, the icon is displayed. If the user clicks the column header a third time, no icon is displayed. If the icon or the icon is displayed, and the user clicks another column header, the current sorting is canceled and the list is sorted on the other column.

The sort order of the filter list is indicated by an icon displayed in the header of the column on which the list was sorted:

No icon: The event acquisition filters are sorted in the order they were added to the list.

: The event acquisition filters are sorted in ascending order.

: The event acquisition filters are sorted in descending order.

Apply

The event acquisition filter whose radio button in the Apply column is selected is the filter that is currently applied.

ID

The IDs of event acquisition filters are displayed in this column. The user can change the ID of an event acquisition filter by using the Event Acquisition Settings window.

Filter name

The names of event acquisition filters are displayed in this column. The user can change the name of an event acquisition filter by using the Event Acquisition Settings window.

Add

Clicking this button allows the user to add a new event acquisition filter. When this button is clicked, the Event Acquisition Settings window opens, where the user can set a new event acquisition filter. A maximum of 50 event acquisition filters can be created. When 50 event acquisition filters have been registered in the list, the Add button is disabled.

Edit

Clicking this button allows the user to edit the selected event acquisition filter. When the user selects an event acquisition filter and then clicks the Edit button, the Event Acquisition Settings window opens, where the user can edit the settings of the selected filter.

Copy

Clicking this button copies the selected event acquisition filter. When the user selects an event acquisition filter and then clicks the Copy button, a new event acquisition filter in which the same conditions as those defined in the selected filter is created and added to the list in the Filter list area.

When a new event acquisition filter is copied, an unused filter ID in the event acquisition filter list is automatically assigned in ascending order.

The new event acquisition filter that is created is assigned the default name Copy original-filter-name, and added to the list. After creating a copy of an event acquisition filter, if the user creates another copy of the same event acquisition filter, a number is added after the string Copy in CopyN original-filter-name format (N is a number). The first number used is 2, which is incremented each time the same event acquisition filter is copied.

When the Copy button is clicked, the new filter that has been created is selected as the filter that is currently applied.

When 50 event acquisition filters have been registered in the list, the Copy button is disabled.

Delete

Clicking this button deletes the selected event acquisition filter.

When this button is clicked, a message dialog box displaying the following message appears:

KAVB0250-I Do you really want to delete this filter?

Clicking the Yes button in this dialog box deletes the selected event acquisition filter from the list in the Filter list area.

Common exclusion-conditions groups

This area displays the list of common exclusion-conditions groups.

When the user selects and double-clicks an item in the list, the Common Exclusion-Conditions Settings window opens so that the selected item can be edited.

A maximum of 30 condition groups can be set.

The user can sort the common exclusion-conditions groups list by clicking the Apply, ID, or Condition group name column header. If the user clicks a column header once, the icon is displayed in the column header. If the user clicks the column header again, the icon is displayed. If the user clicks the column header a third time, no icon is displayed. If the icon or the icon is displayed, and the user clicks another column header, the current sorting is canceled and the list is sorted on the other column.

No icon: The condition groups are sorted in the order they were added to the list.

: The condition groups are sorted in ascending order.

: The condition groups are sorted in descending order.

Apply

The common exclusion-conditions groups that the user has selected are applied.

ID

The common exclusion-conditions group ID is displayed. The user can change this ID in the Common Exclusion-Conditions Settings window.

Condition group name

The condition group names of the common exclusion-conditions groups are displayed. The user can change the condition group name in the Common Exclusion-Conditions Settings window.

Add

Clicking this button adds a new common exclusion-conditions group. When the user clicks this button, the Common Exclusion-Conditions Settings window appears, and the user can specify settings for the new common exclusion-conditions group. A maximum of 30 common exclusion-conditions groups can be added. When 30 common exclusion-conditions groups have been registered in the list, the Add button is disabled.

Edit

Clicking this button allows the user to edit a common exclusion-conditions group. When the user selects a common exclusion-conditions group and then clicks the Edit button, the Common Exclusion-Conditions Settings window opens, where the user can edit the settings of the selected common exclusion-conditions group.

Copy

Clicking this button copies the selected common exclusion-conditions group. When the user selects a common exclusion-conditions group and clicks the Copy button, a new common exclusion-conditions group in which the same conditions as those defined in the selected common exclusion-conditions group is created and added to the list in the Common exclusion-conditions groups area.

When a new common exclusion-conditions group is copied, an unused ID in the common exclusion-conditions group list is automatically assigned in ascending order.

The new common exclusion-conditions group that is created is assigned the default name Copy original-conditions-group-name. After creating a copy of a common exclusion-conditions group, if the user creates another copy of the same common exclusion-conditions group, a number is added after the string Copy in CopyN original-conditions-group-name (N is a number). The first number used is 2, which is incremented each time the same event acquisition filter is copied.

When the Copy button is clicked, the new common exclusion-conditions group that has been created is selected.

When 30 common exclusion-conditions groups have been registered in the list, the Copy button is disabled.

Delete

Clicking this button deletes the selected common exclusion-conditions group.

When this button is clicked, a message dialog box displaying the following message appears:

KAVB0257-I Are you sure you want to delete this condition group?

Clicking the Yes button in this dialog box deletes the selected common exclusion-conditions group from the list in the Common exclusion-conditions groups area.
