hntr2util (Windows only)

Function

The hntr2util command changes the size, number, and output path of the integrated trace logs output by the Hitachi Network Objectplaza Trace Library (HNTRLib2).

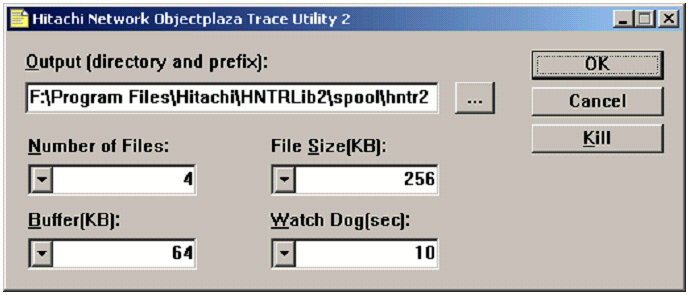

At command execution, the following dialog box appears.

In this dialog box, you can set the size, number, and output path of the HNTRLib2 log files. The dialog box has the following components.

Output (directory and prefix)

Enter the output directory and the file name prefix. The default is system-drive\Program Files\Hitachi\HNTRLib2\spool\hntr2*.log.

Number of Files

Enter the number of log files (1 to 16). The default is 4. The specified number of log files are created in the output directory that you specified in Output.

File Size (KB)

Specify the log file size (8 to 4,096 KB). The default is 256 KB.

Buffer (KB) and Watch Dog (sec)

Do not modify.

OK button

Applies the entered settings and closes the dialog box.

Cancel button

Closes the dialog box without applying the entered settings.

Kill button

Terminates the monitoring process currently executing. You can stop the HNTRLib2 service (service name: Hitachi Network Objectplaza Trace Monitor 2) using the Kill button, but you should normally do this from the Services dialog box that opens from the Windows Control Panel.

Format

hntr2util

Required execution permission

Administrators

Command directory

system-drive\Program Files\Hitachi\HNTRLib2\bin\

Notes

The following shows the amount of log data that each program outputs each day. You should consider these values when specifying log file sizes. The value of each calculation formula provides the amount of log data output during normal operation. You should specify a larger size to handle errors.

Process management

3.1 x number-of-starts-and-stops-per-day (kilobytes)

The above formula obtains the amount of log data for a single product. Estimate the amount of log data for each of JP1/Base, JP1/IM, and JP1/AJS.

Authentication server

0.2 x number-of-logins-from-JP1/AJS - View + 0.2 x number-of-command-executions (kilobytes)

JP1/IM

(0.16 + automated-action-command-length) x number-of-times-automated-action-runs-per-day + 0.4 x number-of-times-automated-action-is-changed-from-JP1/IM - View + 0.16 x number-of-logins-from-JP1/IM - View-to-JP1/IM - Manager + (0.16 + command-length-on-command-execution-screen) x number-of-command-executions-per-day (kilobytes)

JP1/AJS

number-of-times-startup-conditions-are-satisfied x 0.2 (kilobytes)

If you modified the settings for the Hitachi Network Objectplaza Trace Library (HNTRLib2), you must restart it. From the Control Panel, open the Services dialog box, and then restart the HNTRLib2 service (service name: Hitachi Network Objectplaza Trace Monitor 2).
