4.4 An example of communication settings when JP1/Base is not used in a cluster system (in an environment of distinct networks)

This section describes the communication settings in an environment of distinct networks when JP1/Base is not used in a cluster system, based on the system configuration example shown in the following figure.

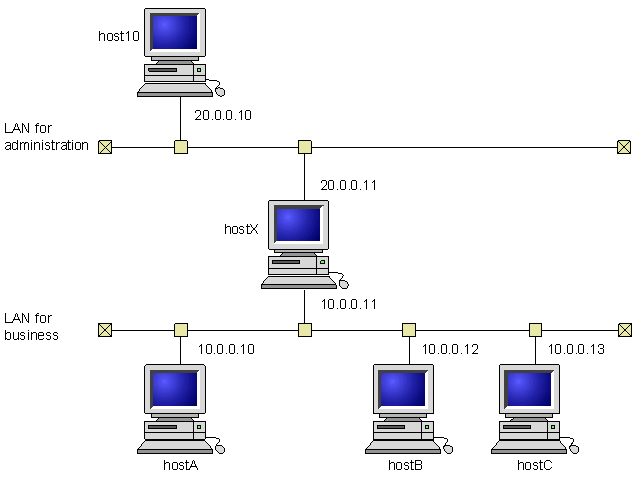

Figure 4-5 A system configuration example when JP1/Base is not used in a cluster system (in an environment of distinct networks)

This configuration assumes that only host10 connects to hostX with the IP address 20.0.0.11 which cannot be resolved against the host name, and the other hosts connect to hostX with the IP address 10.0.0.11 which can be resolved.

The table below indicates if the communication settings of each host must be changed or not in this configuration.

Host name	Communication settings of the main part of JP1/Base		Communication settings of event services (edit of conf)
	jp1hosts information	Communication protocol settings
host10	Required	Not required	Required
hostX	Not required	Not required	Not required
hostA	Not required	Not required	Not required
hostB	Not required	Not required	Not required
hostC	Not required	Not required	Not required

Organization of this section

4.4.1 Changing communication settings
