1.7.1 Process monitoring with the health check function

When a process aborts or hangs, the health check function detects this as an error. The function determines whether a process is hung by comparing the length of time a process takes with the threshold set for that process. The time taken for the processing performed by a specific process is monitored via the shared memory.

The following figure provides an overview of the health check function.

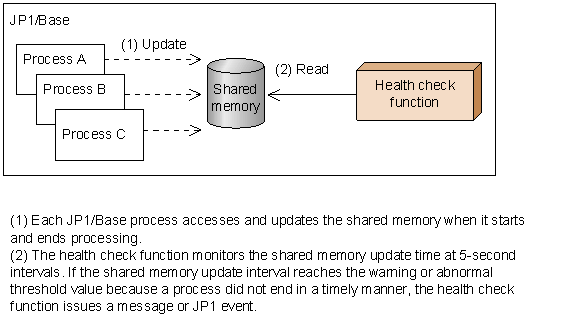

Figure 1-20 Overview of the health check function

The health check function actually monitors the internal processes of the process being monitored to minimize the effects on the user environment. For this reason, the abnormal and warning thresholds are already set and no customization is required by the user.

Organization of this subsection

(1) Monitored processes

(1) Monitored processes

The following table lists the processes monitored by the health check function.

Table 1-3 Processes monitored by the health check function

No.	Process	Process name
1	Process management	jbsspmd
2	Authentication server	jbssessionmgr
3	Configuration management	jbsroute
4	Command execution	jcocmd
5	Plugin service	jbsplugin
6	Event service	jevservice
7	Log file trapping	jevtraplog
8	Event log trapping (Windows only)	jevtrapevt
9	SNMP trap converter	imevtgw
10	Health check	jbshcd and jbshchostd
11	Service management control	jbssrvmgr
12	Local action	jbslcact
13	Inter-process communication	jbscomd

The process for starting JP1/Base process management (jbs_service) and the startup control (jbapmsrvcecon) simply start or stop a service and are not monitored by the health check function. Because other programs use the Hitachi Network Objectplaza Trace Library (HNTRLib2) (hntr2mon), it is not monitored either.
