13.4.4 Using the PFM service automatic restart functionality

Organization of this subsection
(1) Automatic restart functionality
(2) Scheduled restart functionality

(1) Automatic restart functionality

The following figure shows an example of operating a system by using the automatic restart functionality. In this example, the automatic restart functionality checks the operating status of the Agent Collector service every three hours, and if the service stops, it restarts the service.

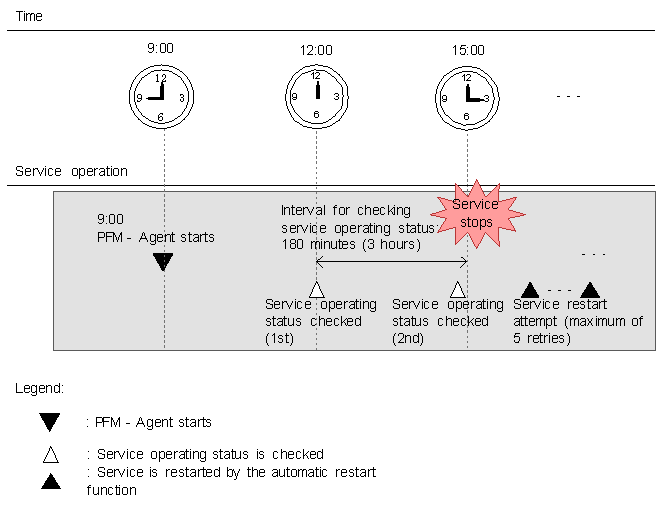

Figure 13-13 Example of using the automatic restart functionality

[Figure]

Restart Configurations settings
Restart when Abnormal Status: Yes (default)

Agent Collector service settings
Auto Restart: Yes
Auto Restart - Interval (minute): 180
Auto Restart - Interval (minute): 5 (default)

(2) Scheduled restart functionality

The following figure shows an example of operating a system by using the scheduled restart functionality. In this example, a PFM - Agent service is restarted at 9:00 every day.

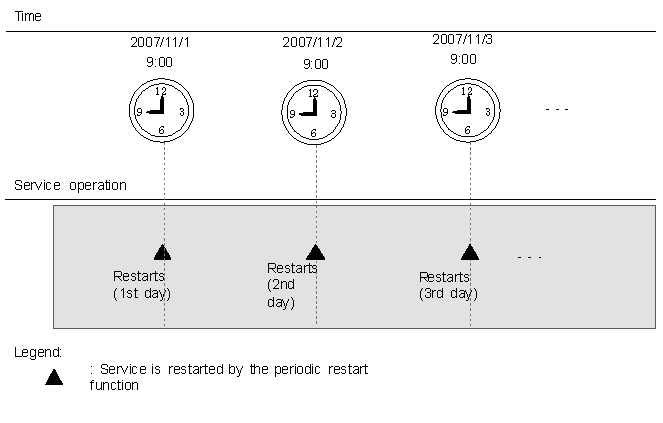

Figure 13-14 Example of using the scheduled restart functionality

[Figure]

Agent Collector service settings
Scheduled Restart: Yes
Scheduled Restart - Interval: 1 (default)
Scheduled Restart - Interval Unit: Day
Scheduled Restart - Origin - Year: 2007 (year)
Scheduled Restart - Origin - Month: 11 (month)
Scheduled Restart - Origin - Day: 1 (day)
Scheduled Restart - Origin - Hour: 9 (hour)
Scheduled Restart - Origin - Day: 0 (minute)
