13.3.3 Status management during cluster system operation

Only one Status Server service is started per host. As a result, when the cluster system is running, the status of the services on the physical and logical hosts is managed by the Status Server service on the physical host.

The following figure shows an overview of the status management function during cluster system operation:

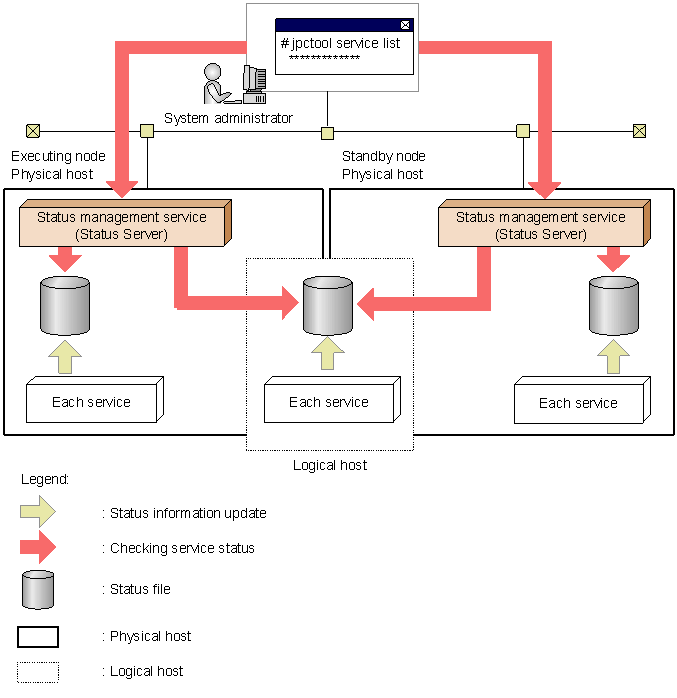

Figure 13-10 Overview of the status management function when the cluster system is used

[Figure]

Note:
If the cluster system is in an active-active configuration, configure the Status Server service so that the service does not failover or so that the service always starts up.
