Job Management Partner 1/Performance Management User's Guide

10.3.1 Installation

The following prerequisite conditions for linking with JP1/IM must be satisfied:.

• The PFM - Manager host must have JP1/Base installed in order to log on to Performance Management as a JP1 user. Perform user management with JP1/Base.
• JP1/Base on the PFM - Manager host must be configured as an object to be managed by JP1/IM - Manager.
• To start PFM - Web Console from JP1/IM View, the JP1/IM - View host must have a browser installed.
• Performance Management 08-00 or later and an earlier version of Performance Management cannot be set up at the same time when establishing linkage with JP1/IM.

Note:

If Performance Management earlier than 08-00 is used for setting up the JP1/IM linkage function, you need to perform unsetup of the JP1/IM linkage function of the earlier version (previous to 08-00) and then set up the JP1/IM linkage function using version 08-00 or later again.

The following figure shows the installation configuration:

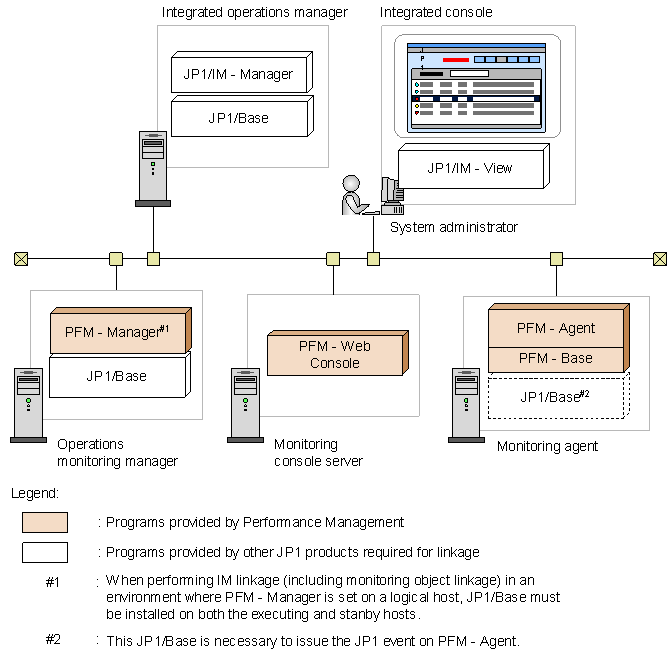

Figure 10-2 JP1/IM installation configuration for linkage with JP1/IM
