Job Management Partner 1/Performance Management User's Guide

9.2.6 Unsetup and uninstallation of PFM - Web Console

The procedures for performing unsetup and uninstallation of PFM - Web Console are explained below.

Organization of this subsection

(1) Process flow for unsetup and uninstallation

(2) Unsetup procedure

(3) Cluster software setting procedure

(4) Uninstallation procedure

(1) Process flow for unsetup and uninstallation

The process flow for unsetup and uninstallation of PFM - Web Console used on a logical host in the cluster system is explained below.

The following figure shows the process flow for unsetup and uninstallation.

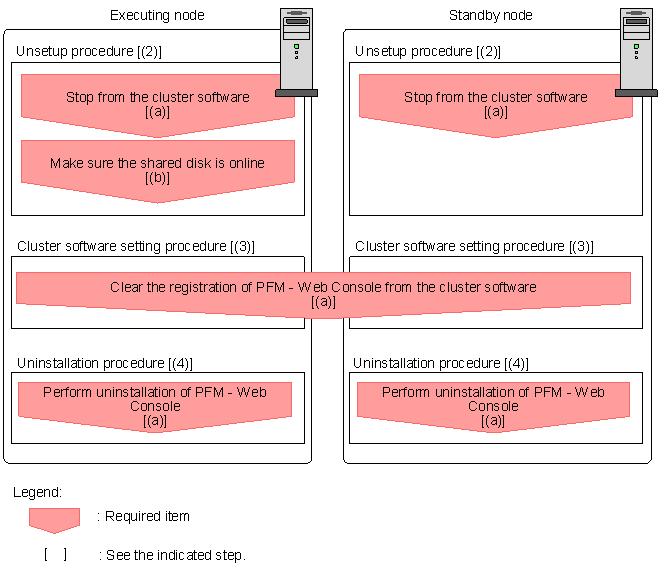

Figure 9-15 Process flow for unsetup and uninstallation of PFM - Web Console used on a logical host (in Windows)

Next, the unsetup procedures, procedures for clearing cluster software settings, and uninstallation procedures are explained below.

The image indicates the items to be performed on the executing node, and the image indicates the items to be performed on the standby node.

(2) Unsetup procedure

The procedure is as follows:

(a) Stopping from the cluster software

Use operations from the cluster software to stop Performance Management programs and services running on the executing node and the standby node. For details on how to stop programs and services, see the cluster software documentation.

(b) Making sure the shared disk is online

Make sure that the shared disk is online. If the shared disk is not online, place it online through the operation of the cluster software and volume manager.

(3) Cluster software setting procedure

(a) Clearing the registration of PFM - Web Console from the cluster software

Delete the settings related to PFM - Web Console on the logical host from the cluster software. For details on how to delete settings, see the cluster software documentation.

(4) Uninstallation procedure

(a) Performing uninstallation of PFM - Web Console

Uninstallation is performed separately for the executing node and the standby node. The uninstallation procedure of PFM - Web Console is the same as for a non-cluster system. For details, see the chapter describing installation and setup (in Windows) in the Job Management Partner 1/Performance Management Planning and Configuration Guide.

Note:

If the installation folder for the bookmark definition information has been changed from the default setting, it will not be deleted when performing uninstallation of PFM - Web Console. You need to delete it manually after performing the uninstallation.
