Job Management Partner 1/Performance Management User's Guide

6.4.11 Importing alarm tables

To import the alarm table:

1. Log on to PFM - Web Console from the browser of the monitoring console.
   The main window appears.

2. In the tab frame of the main window, select the Alarms tab.
   The Alarms window appears.

3. In the method frame, select Import.
   The Import window appears.

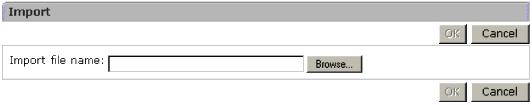

   The following figure shows an example of the Import window.


   Figure 6-12 Import window



4. Click the Browse button of Import file name.
   The Select File window appears.

5. Select the definition file of the alarm to be imported.
   The root, folders, and alarm tables described in the definition file to be selected here are imported.

6. Click the OK button.
   A message box to confirm your replacement appears.

7. If you want to replace the definition file of the alarm table, click the OK button in the message box.
   The alarm tables are imported.


Note:

If importing an alarm table causes one of the already bound alarm tables to be overwritten, the alarm table is unbound. You must rebind the alarm table, if necessary.
