5.4.1 Procedure for creating reports by using the Quick Guide

(For details on how to create an alarm, see 6.5 Setting alarms by using the Quick Guide.)

To create a report by using the Quick Guide:

  1. From the monitoring console browser, log on to PFM - Web Console.
    The main window appears.

  2. In the navigation frame of the main window, select the Agents tab.
    The Agents window is displayed.

  3. From the Display format pull-down menu in the navigation frame, choose the display format for the Agents tree.
    The Agents tree appears in the selected display format.
    • When User Agents is selected:
      The Agents tree that has User Agents (logged-on-user-name) as the root appears.
    • When Products is selected:
      The Agents tree that has Products as the root appears.

  4. In the navigation frame, select the agent for which you want to create a report from the Agents tree.
    The selected agent is marked with a checkmark.

  5. Choose the Quick Guide button in the method frame.
    The Quick Guide window appears.

    Figure 5-21 Quick Guide window

    [Figure]

  6. View the fields used in creating the report.
    You can use either of the following methods to view fields:
    • Click and expand a record name anchor and select a field from the displayed list of fields.
    • Search the fields for a specific character string and select a field from the results.
      To search through fields, enter a character string into Keywords to find: and click the Search Fields button, or click the Search Fields window to display the Quick Guide > Search Fields window. For details on the searching fields, see 5.4.2 Searching fields.

  7. Click one of the report icons displayed in the field.
    When you select either the Realtime or Historical report icon, a Reports window for reports created with the Quick Guide appears.
    • Realtime report icon: [Figure]
    • Historical report icon: [Figure]

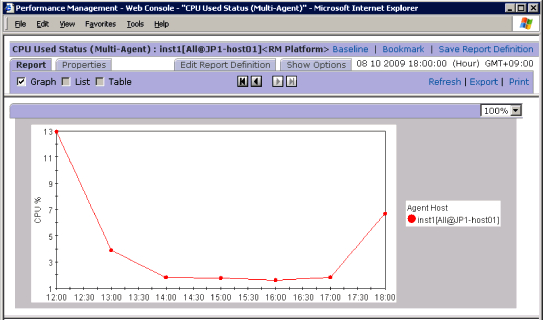

      Figure 5-22 Report window (Quick Guide)

      [Figure]

  8. Click the Save Report Definition anchor on the report window, specify a name for the report, and then save the report.
    The Save Report Definition window appears. Specify a destination folder and a name for the report, and then click the OK button to save the report.
