Job Management Partner 1/Performance Management User's Guide

5.3.1 Creating a report folder

To create a folder for storing reports:

1. From the monitoring console browser, log on to PFM - Web Console.
   The main window appears.

2. In the navigation frame of the main window, choose the Reports tab.
   The Reports window appears.

3. Select User Reports or a folder under User Reports for creating a folder in the Reports tree of the navigation frame.
   The selected folder is marked with a checkmark.

4. In the method frame, select New Folder.
   In the information frame, the New Folder window appears.

5. In Name of new folder, enter a folder name (1-64 characters).
6. Click the OK button.
   A folder is added in the User Reports folder selected in step 3 or below the folder.

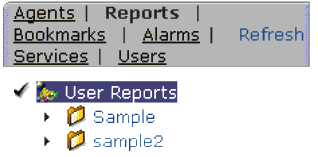

   The following figure shows an example of creating a report folder:


   Figure 5-7 Example of creating report folder
