1.5.1 Logging on to PFM - Web Console

To log on to PFM - Web Console from the monitoring console browser:

  1. In the browser, enter the following URL:

    http://PFM-Web-Console-server-name:20358/PFMWebConsole/login.do


    Reference note:
    For details on how to change the port number to access to PFM - Web Console from the browser, see an appendix of the manual Job Management Partner 1/Performance Management Reference.

    Note
    If you log on more than once from the same browser on the same monitoring console, the previously logged-in session might be invalidated. For details on controlling multiple logins, see the chapter describing the initialization file (config.xml) in the manual Job Management Partner 1/Performance Management Reference.
    The Login window appears.

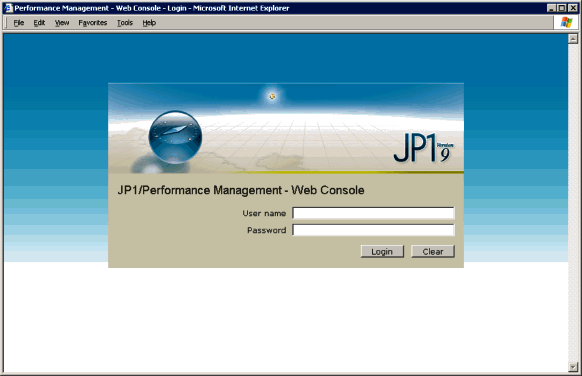

    Figure 1-1 Login window

    [Figure]

  2. Enter a User name and Password.
    Enter a user name and password.

    Reference note:
    Use the following user account when logging on for the first time:
    User name: ADMINISTRATOR
    Password: None
    For security reasons, configure a password for the ADMINISTRATOR account before starting to use Performance Management. For details on user account management, see 2. Managing User Accounts.
  3. Click the Login button.
    Log on to PFM - Web Console. The main window appears.
    In the navigation frame immediately after login, User Agents (logged-on-user-name) appears in the root of the Agents tree. In the information frame, the summary that User Agents (logged-on-user-name) is being selected appears. For details on how to display the summary, see 3.3.5 Using summary display to check the operating status.

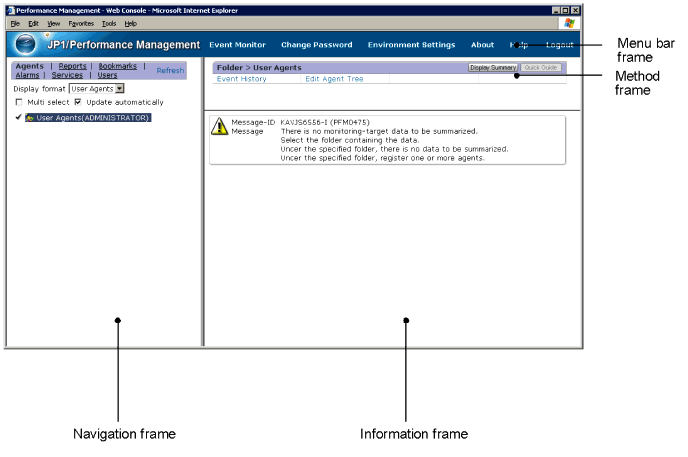

    Figure 1-2 Main window

    [Figure]

For details on the main window, see the chapters that describe windows in the manual Job Management Partner 1/Performance Management Reference.
