Job Management Partner 1/Performance Management Planning and Configuration Guide

5.1.3 Installation procedures

This subsection describes the procedure to install Performance Management programs, and the procedure to install programs provided on the CD-ROM.

Organization of this subsection

(1) Program installation steps

(2) Installing Performance Management programs

(1) Program installation steps

This subsection describes the steps to install Performance Management programs.

Note:

For Performance Management programs, you can install monitoring manager, monitoring console server, and monitoring agent in any order.

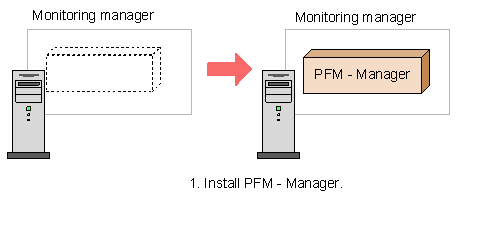

(a) Steps to install the monitoring manager

Install PFM - Manager on the monitoring manager.

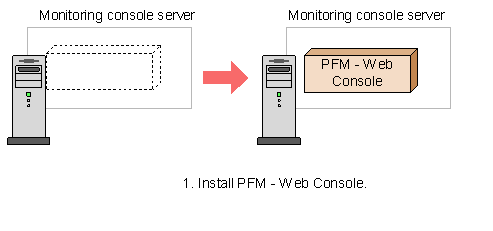

(b) Steps to install the monitoring console server

Install PFM - Web Console on the monitoring console server.

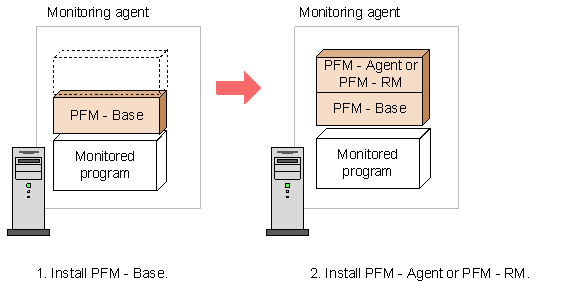

(c) Steps to install the monitoring agent

First Install PFM - Base and then install PFM - Agent or PFM - RM. You cannot install PFM - Agent or PFM - RM on a host that does not have PFM - Base installed.

If you install PFM - Agent or PFM - RM and PFM - Manager on the same host, install PFM - Manager first, and then PFM - Agent or PFM - RM.

For details on the installation procedure, see the appropriate PFM - Agent or PFM - RM manual.

(2) Installing Performance Management programs

There are two ways to install Performance Management programs. One method uses the CD-ROM, and the other uses JP1/Software Distribution to perform remote installation. For details on how to use Job Management Partner 1/Software Distribution, see the Job Management Partner 1/Software Distribution Administrator's Guide Volume 1.

Notes for all Windows OSs

Stop all Performance Management programs and services that are running on the host on which you intend to install the Performance Management program. All services on the physical host and logical host must be stopped. For details on how to stop services, see the chapter that describes starting and stopping Performance Management in the Job Management Partner 1/Performance Management User's Guide.

Note on installing in a Windows Server 2008 environment

If the User Account Control (UAC) function is enabled, the User Account Control dialog box might appear during installation. If this dialog box appears, click the Continue button to continue the installation. If you click the Cancel button, the installation is aborted.

To install programs by using the CD-ROM:

1. Log on with Administrators permissions to the host on which you intend to install the Performance Management program.
2. Stop Performance Management programs and services.
   Stop all running Performance Management programs and services.

3. Insert the CD-ROM into the CD-ROM drive.
   Follow the instructions provided by the installer after starting up.
   Define the following information for installation:

   • User information
     Enter a user name and other information.

   • Installation folder
     Specify the folder in which you intend to install the Performance Management programs.
     An installation folder is created when you specify the folder in the Select Directory dialog box and click the OK button. If you inadvertently create the wrong folder, delete the folder after the installation has finished.

   • Program folder
     Specify the program menu name you want to register in the Start - All programs menu in Windows.
     Performance Management is registered by default.

   • PFM - Manager for the connection destination (during a new installation of PFM - Base)
     Enter the host name of the PFM - Manager host for the connection destination when you perform a new installation of PFM - Base.
     You do not have to set PFM - Manager for the connection destination during installation. You can set it later. If you do not set PFM - Manager for the connection destination during installation, the physical host name of the PFM - Agent host or PFM - RM host is used. After the installation, change PFM - Manager for the connection destination. For details on changing PFM - Manager for the connection destination, see 5.3.2 Changing PFM - Manager for the connection destination.


     Reference note

     You can specify the installation folders and program folders for the Performance Management programs except PFM - Web Console only when installing the Performance Management programs on the host for the first time. When installing programs the second or subsequent times, the programs are installed or registered in the folders you specified during the initial installation.

     Additionally, you can set PFM - Manager for the connection destination only when PFM - Base is first installed on a host without PFM - Agent 08-00 or earlier. If you install PFM - Base on a host that has version 08-00 or earlier of PFM - Agent installed, or if you perform an overwrite installation of PFM - Base, the existing settings of PFM - Manager for the connection destination are inherited.
