Job Management Partner 1/Performance Management Planning and Configuration Guide

2.3.2 Using the browser to log on to PFM - Web Console

To log on to PFM - Web Console from the monitoring console browser:

1. Enter the following URL in the monitoring console browser:



   http://PFM - Web Console-installation-server-name:20358/PFMWebConsole/login.do


   The Login window is displayed.

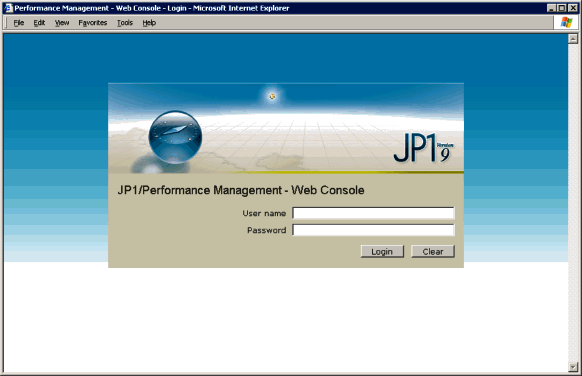

   Figure 2-3 The Login window



2. Enter User Name and Password.
   After installation, a user account with the user name ADMINISTRATOR and no password is configured by default.
   Enter the information as shown below:
   User Name: ADMINISTRATOR
   Password: None


   Note

   For security reasons, configure a password for the ADMINISTRATOR account before starting to use Performance Management. For details on how to manage user accounts, see the chapter that describes management of user accounts in the Job Management Partner 1/Performance Management User's Guide.

3. Click the Login button.
   Log on to PFM - Web Console. The Main window is displayed.

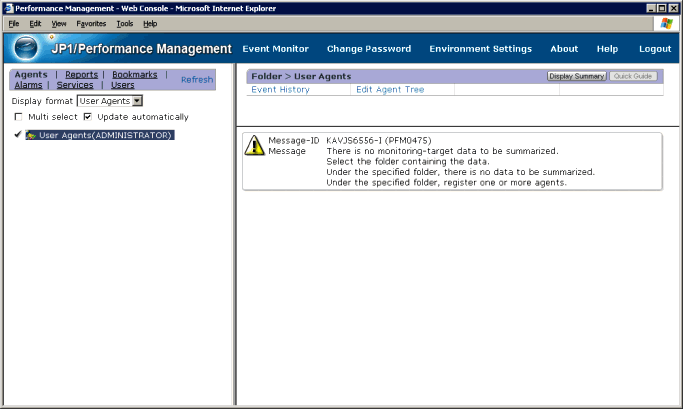

   Figure 2-4 The Main window



The following describes procedures using the window of PFM - Web Console, including creating a user account and creating agent levels for monitoring.
