The following figure shows the process of stopping the logical server:

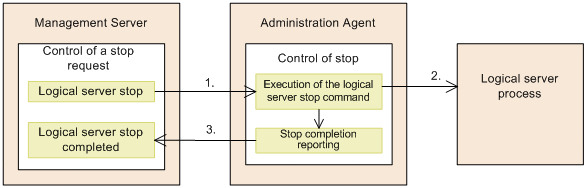

Figure 2-2 Stopping the logical server
![[Figure]](FIGURE/ZU020200.GIF)
- The Management Server sends a request to the Administration Agent server to stop the logical server.
- The Administration Agent executes the stop command of the logical server to stop the requested logical server.
- The Administration Agent notifies the Management Server that the logical server is now stopped.
