The following figure illustrates starting the logical server and checking the operations:

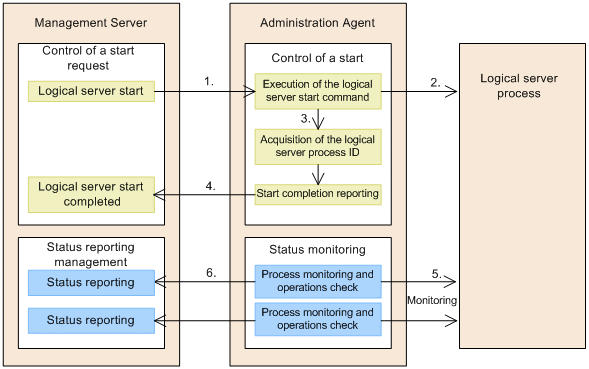

Figure 2-1 Starting the logical server and checking the operations

1. The Management Server sends a request to the Administration Agent to start the logical server.
2. The administration agent executes the start command of the logical server to start the requested logical server.
3. The process ID of the logical server process is acquired in the Administration Agent.
4. The administration agent notifies the Management Server that the logical server is now running.
5. The administration agent monitors the logical server process and checks the operation of the logical server.
   The administration agent uses the process ID of the logical server process, checks if the process exists, and if it is able to verify the existence of the process, it checks the operation of the logical server.

6. The administration agent notifies the status of the logical server to the Management Server.

The following table describes the method of checking the process and the operation for each type of logical server. Note that for the logical servers in case of which the operation checking method is not mentioned in the table, only the check for verifying whether the process exists is carried out.

Table 2-2 Methods for checking the operations of logical servers

Type of logical server		Method of starting the process#	Method of checking the operation of the logical server
			Check that the process exists	Check the operation
Logical performance tracer		Indirect startup	Check the existence of the process ID that is obtained by using the commands provided by the performance tracer.	--
Logical Smart Agent		Direct startup	Check the existence of the process ID of the start command.	--
Logical Naming Service		Direct startup	Check the existence of the process ID of the start command.	Check that the root context can be obtained.
Logical CTM domain manager		Indirect startup	Check the existence of the process ID that is obtained by using the commands provided by the CTM domain manager.	--
Logical CTM	Naming service	Direct startup	Check the existence of the process ID of the start command.	--
	CTM daemon	Indirect startup	Check the existence of the process ID that is obtained by using the commands provided by the CTM daemon.	--
Logical SFO server (Compatibility functionality)		Direct startup	Check the existence of the process ID of the start command.	Check that the SFO server application is running.
Logical J2EE server		Direct startup	Check the existence of the process ID of the start command.	Check that there is a response to the call by RMI.
Logical Web server		Indirect startup	Check the existence of the process ID of the control process and the server process of the web server, obtained from the httpd.pid file that is generated by the Web server.	Check that a correct response can be received through the HTTP access of the URL for checking the Cosminexus HTTP Server operations. The response is sent by the server process of the Web server.
Logical user server		Direct startup	Check the existence of the process ID of the start command.	When the isAlive command is defined in the logical user server definition file, check that the processing is executed by using the isAlive command. When not defined, it is assumed that the operation check was successful.
		Indirect startup	Check the existence of the process ID obtained by the getProcessID command.	Use the isAlive command when it is defined in the logical user server definition file. When not defined, it is assumed that the operation check was successful.

Legend:

--: None

#

In the case of direct setup, the command that is executed is also monitored. In the case of indirect setup, the services or the processes invoked by the command are monitored. The command is also used to stop the services and processes that are invoked using other commands.
