Use of a logical user server enables the Management Server to manage any user defined process.

When you use Smart Composer functionality, define the logical user server in the Easy Setup definition file. You cannot define a logical user server in the Management Portal. However, you can perform operations like Start, Stop, and Monitoring for the defined logical user server. To use logical user server on the Management portal, you must first define the logical user server in a file, and then based on the file, set up the logical user server by using the management command.

System configuration example

Following figure shows the configuration example of the system to which the logical user server is to be allocated. The subsection describes the method of allocating logical user server to the system set up in 4.1 System setup for improving machine performance by allocating Web server to a different host

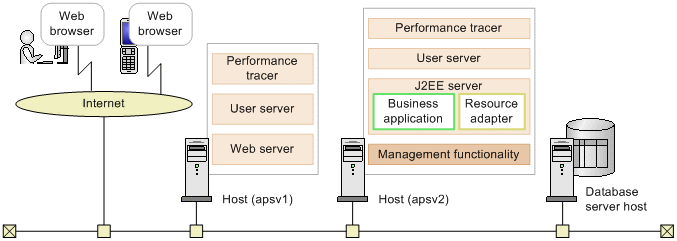

Figure 4-9 Configuration example of the system for allocating the logical user server

Following table describes the settings used in the example.

Table 4-29 Settings used in the example (Logical user server allocation)

Classification	Item	Example of settings
Entire system	Easy Setup definition file name	MyWebSystemDef.xml
	Web system name	MyWebSystem
	Service unit name	unit1
Host for allocating the Web server	Host name	apsv1
	IP Address (Management IP Address)#	192.168.100.11
	Logical user server name	UserServer1
Host for allocating the J2EE server	Host name	apsv2
	IP Address (Management IP Address)#	192.168.100.12
	Logical user server name	UserServer2

#

In a single network configuration, the same IP address serves as the business IP address and the management IP address.

Tasks and their necessity

The following table describes the tasks to be executed when setting up a system for allocating to the logical user server, and the necessity of the tasks

Table 4-30 Tasks to be executed when setting up a system for allocating to the logical user server (when using the Management Portal) and necessity of these tasks

Tasks to be executed when setting up a system for allocating the logical user server	Necessity of the task	Conditions for executing the tasks	Reference manual	Reference
Preparing the database	A	For connecting to the database	This manual	2.1.1
Setting up the database environment (Oracle settings)	A	For connecting to the database (Oracle)		4.1.2
Setting up Component Container Administrator (for UNIX)	A	When the OS is UNIX and you want to permit operational access to general users.		4.1.3
Installing Application Server	Y	Mandatory (when the OS is Windows)		2.2.2
		Mandatory (when the OS is AIX, HP-UX)		2.2.3
		Mandatory (when the OS is Linux)		2.2.4
Installing products used for connecting to the database	A	For connecting to the database		2.2.5
Symbolic links supported by Application Server (for UNIX)	A	When the OS is UNIX		4.1.5
Setting up the database connection environment	A	For connecting to the database (HiRDB)		4.1.6
		For connecting to the database (Oracle)		4.1.7
		For connecting to the database (SQL Server)		4.1.8
System environment variable settings	Y	Mandatory		4.1.11
Logical server environment variable settings	A	If you want to change the environment variables during installation.		4.1.12
Setting up the Administration functionality	Y	Mandatory	Management Portal	2.2
Starting Administration Agent	Y	Mandatory		4.1.2
Starting Management Server	Y	Mandatory		4.1.2
System environment settings	Y	Mandatory		3.2
System environment setup	Y	Mandatory
Logical user server settings	Y	Mandatory		3.2.4
System startup (Logical server startup)	Y	Mandatory		4.1.2
Resource adapter settings	A	For resource connection by using a resource adapter (DB Connector)		3.3
		For resource connection by using a resource adapter (Other than a DB Connector)
Starting a resource adapter	A	For resource connection by using a resource adapter		4.1.2
Setting and starting a business application	Y	Mandatory		3.4,4.1.2

Legend:

Management Portal: Indicates the uCosminexus Application Server Management Portal Operation Guide.

Y: Mandatory task

A: Tasks to be executed with the execution conditions are fulfilled

Table 4-31 Tasks to be executed when setting up a system for allocating the logical user server (when using Smart Composer functionality) and necessity of these tasks

Tasks to be executed when setting up a system for allocating the logical user server	Necessity of the task	Conditions for executing the tasks	Reference
Preparing the database	A	For connecting to the database	2.1.1
Database environment settings (Oracle settings)	A	When the database is Oracle	4.1.2
Component Container Administrator settings (for UNIX)	A	When the OS is UNIX and you want to assign operational rights to general users.	4.1.3
Installing Application Server	Y	Mandatory (when the OS is Windows)	2.2.2
		Mandatory (when the OS is AIX, HP-UX)	2.2.3
		Mandatory (when the OS is Linux)	2.2.4
Installing products used for connecting to the database	A	For connecting to the database	2.2.5
Symbolic links supported by Application Server (for UNIX)	A	When the OS is UNIX	4.1.5
Setting up the database connection environment	A	When the database is HiRDB	4.1.6
		When the database is Oracle	4.1.7
		For connecting to the database (SQL Server)	4.1.8
Setting the system environment variable	Y	Mandatory	4.1.11
Setting the logical server environment variables	A	If you want to change the environment variables during installation	4.1.12
Setting up the Administration functionality	Y	Mandatory	4.1.14
Starting the Administrator agent	Y	Mandatory	4.1.17
Starting Management Server	Y	Mandatory	4.1.18
Setting up the system environment (Easy Setup definition file settings)	Y	Mandatory	4.1.20, 4.5.2
System environment setup (Setup)	Y	Mandatory	4.1.23
System startup	Y	Mandatory	4.1.24
Setting up the resource adapter	A	For connecting with DB Connector	4.1.26
		For connecting with the connector other than DB Connector	4.1.27
Starting the resource adapter	A	For connecting to a resource	4.1.28
Setting and starting the business application	Y	Mandatory	4.1.29

Legend:

Y: Mandatory task

A: Tasks to be executed with the execution conditions are fulfilled
