14.3.19 get (acquires specified data)
- Organization of this subsection
(1) Description
This subcommand acquires specified value.
This subcommand is used to test whether the configured execution environment is operational.
(2) Rules
You can execute this subcommand when the EADS server is running.
(3) Format
eztool get cache-name key [--format format-name] [--columns column-name[,column-name]...] [--filter filter-condition] [--match matching-condition]
(4) Options and arguments
(a) cache-name
Specify the name of the cache containing the value you want to acquire.
The following characters are permitted for a cache name:
-
If cache property files were not used to create caches
A maximum of 32 single-byte characters in ASCII codes 0x20 to 0x7E
-
If cache property files were used to create caches
A maximum of 32 single-byte alphanumeric characters (0 to 9, A to Z, and a to z)
(b) key
Specify the key associated with the value you want to acquire.
For details about the data that can be specified as keys, see 15.2.2(1) Data types that can be specified as keys.
(c) --format format-name
For details about this option, see 14.4.2 How to specify the display format.
(d) --columns column-name[,column-name]...
For details about this option, see 14.4.3 How to specify column filters.
(e) --filter filter-condition
For details about this option, see 14.4.4 How to specify row filters.
(f) --match matching-condition
For details about this option, see 14.4.5 How to specify a condition match.
(5) Output example

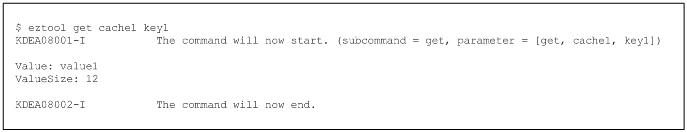

The following shows an output example of the eztool get command's execution results.
For details about the components of the displayed information, see 14.4.1 Components of the displayed information.
The following table lists and describes the summary display information.
No. |
Summary name |
Description |
---|---|---|
1 |
Value |
Acquired value |
2 |
ValueSize |
Size of acquired value (in bytes) |
(6) Return code
The following table lists the return codes that this subcommand returns.
No. |
Return code |
Description |
|
---|---|---|---|
eads.command.compat parameter omitted in the command properties |
0300 specified in the eads.command.compat parameter in the command properties |
||
1 |
0 |
0 |
Command execution was successful. |
2 |
101 |
101 |
Initialization of the command failed. |
3 |
120 |
The command failed due to a syntax error. |
|
4 |
150 |
The command failed during execution. |
|
5 |
200 |
The command failed due to a timeout. |
- When the --match option is specified:
-
If the condition was satisfied, the subcommand returns 0; otherwise, the subcommand returns 1. If the command's execution failed, the return code is the same as when the --match option is not specified.
(7) Notes
-
You can use this subcommand to manipulate data processed by an API function; conversely, you can use an API function to manipulate data processed by this subcommand.
Note that the data types and sizes permitted for key and value are not completely compatible with those permitted by the API functions.
-
The --format, --columns, and --filter options are ignored, if specified. These options are provided for future extension of functions.
-
If the command times out during output processing, the output results might not be complete. The command might time out even if output processing is complete. If this happens, increase the command's timeout value, and then re-execute the command.
