14.4.1 Components of the displayed information

The information displayed as execution results by eztool subcommands consists of the following elements:

• Summary

  This element displays the information that is common to the entirety of the information that is displayed. Its format is a summary name and a summary value.

• Content

  This element displays execution results. Its format is a header and a body.

  A set of data arranged vertically is called a column, and a set of data arranged horizontally is called a row.

  • Header

    This is a row displaying the types of data (column names) included in the execution results.

  • Body

    This is the section that displays execution results.

• Null line

  This is a blank line used to separate data items.

• Ruled line

  This is a line used to separate items for readability.

Each data item in the displayed information is called a cell. If multiple consecutive cells in the same column have the same value, the cell value might be omitted from the second and subsequent rows for readability purposes. In the case of a cell for which there is no data, a hyphen (-) or a null character string is output.

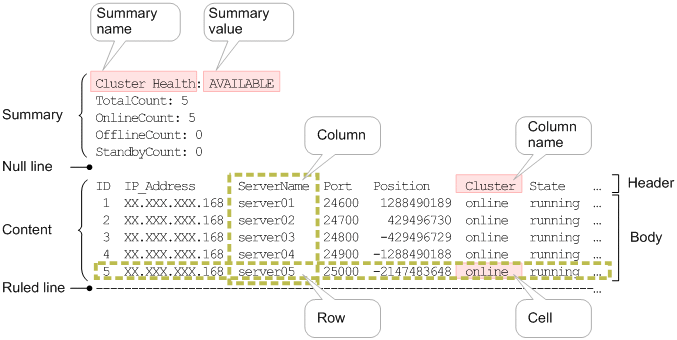

The following figure shows the configuration of the elements using the eztool status -v command as an example.
