A working directory is used for the operation of the stream data processing system. The user creates operation directories after installing Stream Data Platform - AF. For details about how to create working directories, see 3.3.2 Creating a working directory.

The following figure shows the structure of a working directory.

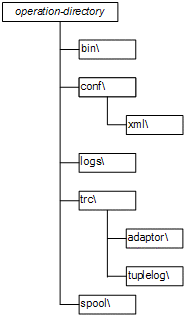

Figure 3-3 Structure of a working directory

The table below lists and describes the directories in a working directory. For details about the files in the directories, see the sections indicated in the table.

Table 3-2 Descriptions of directories in a working directory

Directory		Description	Section
bin\		Directory for storing the commands used during operation	Chapter 7
conf\	--	Directory for storing the SDP server definition files. Store in this directory the SDP server definition files created by the user.	3.4, Chapter 8
	xml\	Directory for storing the adaptor definition files. Store in this directory the adaptor definition files created by the user.	3.6, Chapter 9
logs\		Directory to which log files are output	6.3.1
trc\	--	Directory to which various traces (such as API traces) are output	6.3.2
	adaptor\	Directory to which adaptor trace information is output	6.3.3
	tuplelog\	Directory to which tuple logs are output	6.3.4
spool\		Work directory for Stream Data Platform - AF	--

Legend:

--: Not applicable.
