This subsection describes the installation directory for Stream Data Platform - AF.

The following figure shows the structure of the Stream Data Platform - AF installation directory.

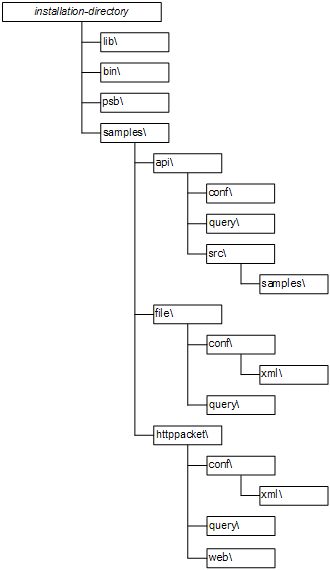

Figure 3-2 Structure of the installation directory

Reference note

• To specify the installation directory, you can also use the variable %SDP_INSTALL_DIR% which represents the installation directory.
• The default installation directory is OS-installation-drive:\Program Files\Hitachi\SDP.

The table below lists and describes the directories in the installation directory. For details about the files in the directories, see the sections indicated in the table.

Table 3-1 Descriptions of directories in the installation directory

Directory				Description	Section
lib\				Directory for storing the Stream Data Platform - AF libraries	--
bin\				Directory for storing the sdpsetup command that is used when a working directory is created. Once you have created a working directory, execute the commands under working-directory\bin\.	Chapter 7
psb\				Directory for storing the Web server used by Stream Data Platform - AF	--
samples\	--			Directory for storing sample files. Three sets of sample files are provided for different types of adaptors and callbacks. They are stored in the directories api, file, and httppacket.	--
	api\	--		Directory for storing sample files for using custom adaptors	--
		conf\		Directory for storing sample files for the SDP server definition files	3.4, Chapter 8
		query\		Directory for storing sample files for the query definition files	3.5
		src\	samples\	Directory for storing sample programs for custom adaptors	Related manual#
	file\	--		Directory for storing sample files for enabling the standard adaptors to use the following callbacks: File input connector File output connector	--
		conf\	--	Directory for storing sample files for the SDP server definition files	3.4, Chapter 8
			xml\	Directory for storing sample files for the adaptor definition files	3.6, Chapter 9
		query\		Directory for storing sample files for the query definition files	3.5
	httppacket\	--		Directory for storing sample files for enabling the standard adaptors to use the following callbacks: HTTP packet input connector Filter Record extraction Dashboard output connector	--
		conf\	--	Directory for storing sample files for the SDP server definition files	3.4, Chapter 8
			xml\	Directory for storing sample files for the adaptor definition files	3.6, Chapter 9
		query\		Directory for storing sample files for the query definition files	3.5
		web\		Directory for storing sample files for using the dashboard output connector's callback	3.7

Legend:

--: Not applicable.

#

For details about these sample programs, see the manual uCosminexus Stream Data Platform - Application Framework Application Development Guide.
