Appendix D.7 Performing an overwrite installation of JP1/CSC - Agent

This section explains how to perform an overwrite installation of JP1/CSC - Agent in a cluster system.

The following figure shows the procedures for an overwrite installation of JP1/CSC - Agent.

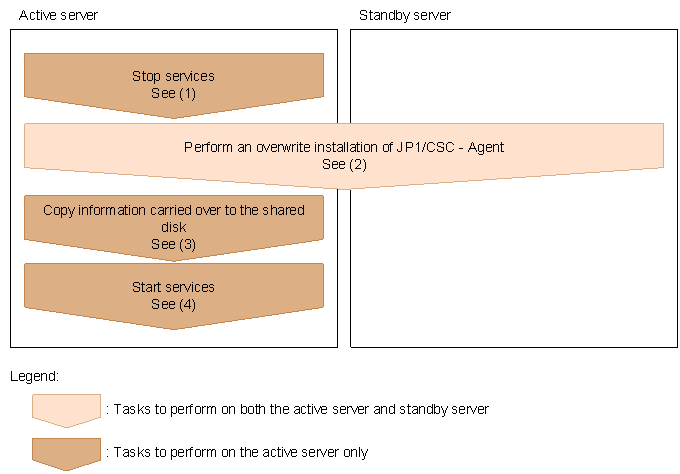

Figure D-7 Procedures for overwrite installation of JP1/CSC - Agent

[Figure]

Organization of this subsection
(1) Stop services
(2) Perform an overwrite installation of JP1/CSC - Agent
(3) Copying information carried over to the shared disk (for the active server only)
(4) Start services

(1) Stop services

Make sure that the resources registered in the cluster software (MSCS or WSFC) are offline, and then stop the following service:

For details about how to stop services, see the MSCS or WSFC documentation.

(2) Perform an overwrite installation of JP1/CSC - Agent

Perform an overwrite installation of JP1/CSC - Agent on the active server and standby server. For details about the procedures for performing an overwrite installation, see 5.7.1(2) Performing an overwrite installation of JP1/CSC - Agent.

(3) Copying information carried over to the shared disk (for the active server only)

An administrator manually copies the following files in the JP1/CSC - Agent installation folder to the shared disk path specified during setup.

Table D-7 Files to copy to the shared disk

Contents Source Destination
Environment settings information JP1/CSC - Agent-installation-folder\conf\cscaenv.conf shared-disk-path\conf\cscaenv.conf
JP1/CSC - Agent-installation-folder\conf\cscaenvname.conf shared-disk-path\conf\cscaenvname.conf
RADIUS settings information JP1/CSC - Agent-installation-folder\radius\conf\cscrenv.conf shared-disk-path\radius\conf\cscrenv.conf
JP1/CSC - Agent-installation-folder\radius\conf\cscrenvname.conf shared-disk-path\radius\conf\cscrenvname.conf

(4) Start services

Make sure that the resources registered in the cluster software (MSCS or WSFC) are online, and then start the following service:

For details about how to start services, see the MSCS or WSFC documentation.
