Appendix D.6 Installing and setting up JP1/CSC - Agent

This section explains how to install and set up a new installation of JP1/CSC - Agent to be run in a cluster system.

The following figure shows the procedures for installation and setup. Setup of the cluster environment for the OS and configuration of the network control product must be completed and logical IP addresses must be usable before you can set up JP1/CSC - Agent for operation in the cluster system.

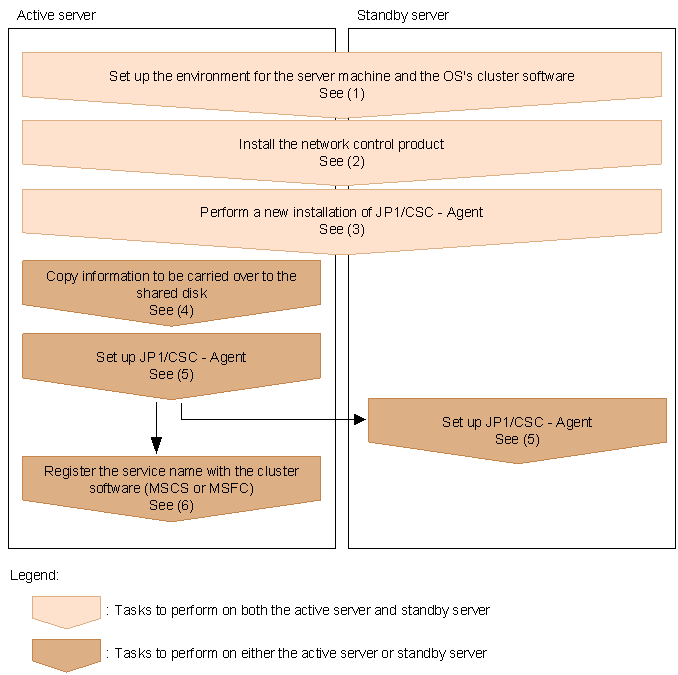

Figure D-6 Procedures for JP1/CSC - Agent installation and setup (new installation)

Organization of this subsection

(1) Setting up the environment for the server machine and OS cluster software

(2) Installing a network control product

(3) Performing a new installation of JP1/CSC - Agent

(4) Copying information carried over to the shared disk (for the active server only)

(5) Setting up JP1/CSC - Agent

(6) Registering a service name in the cluster software (for the active server only)

(1) Setting up the environment for the server machine and OS cluster software

To set up the environment, perform the following on the active server and standby server:

Set up the server machine.

Install and set up the OS cluster software.

Prepare the shared disk and logical IP address.

For details about installing and setting up the cluster software, see the cluster software documentation.

(2) Installing a network control product

Install and set up a network control product to run in the cluster environment. For details about installing a network control product, see the documentation for the particular network control product.

(3) Performing a new installation of JP1/CSC - Agent

Install JP1/CSC - Agent on the local disk of both the active server and standby server.

(4) Copying information carried over to the shared disk (for the active server only)

An administrator manually copies the following JP1/CSC - Agent installation folders to the shared disk path specified during setup.

Table D-5 Folders copied to the shared disk

Contents Copy source Copy destination

Environment settings information JP1/CSC - Agent-installation-folder\conf shared-disk-path\conf

Log file JP1/CSC - Agent-installation-folder\log shared-disk-path\log

RADIUS settings information JP1/CSC - Agent-installation-folder\radius\conf shared-disk-path\radius\conf

RADIUS log file JP1/CSC - Agent-installation-folder\radius\log shared-disk-path\radius\log

RADIUS connection control list JP1/CSC - Agent-installation-folder\radius\dat shared-disk-path\radius\dat

Legend:

installation-folder indicates the installation folder for JP1/CSC - Agent. The default installation folder for JP1/CSC - Agent is as follows (when the OS is installed under C:\):

For Windows Server 2003 (x64):

C:\Program Files(x86)\HITACHI\jp1netmcsca

For other OSs:

C:\Program Files\HITACHI\jp1netmcsca

Contents	Copy source	Copy destination
Environment settings information	JP1/CSC - Agent-installation-folder\conf	shared-disk-path\conf
Log file	JP1/CSC - Agent-installation-folder\log	shared-disk-path\log
RADIUS settings information	JP1/CSC - Agent-installation-folder\radius\conf	shared-disk-path\radius\conf
RADIUS log file	JP1/CSC - Agent-installation-folder\radius\log	shared-disk-path\radius\log
RADIUS connection control list	JP1/CSC - Agent-installation-folder\radius\dat	shared-disk-path\radius\dat

(5) Setting up JP1/CSC - Agent

Set up JP1/CSC - Agent on the active server first, and then on the standby server.

JP1/CSC - Agent can be set up from the Client Security Control - Agent Setup dialog box. For the items in the Client Security Control - Agent setup dialog box, set the same information for the active sever and standby server.

The procedure for setting up JP1/CSC - Agent differs according to the linked network control product. For details, see 13. Setting Up a Quarantine System.

Active server
Choose the Basic Settings page in the Client Security Control - Agent Setup dialog box, and set the following items for Cluster information.

Table D-6 Setup items for Cluster Information (active server)

Setup item Description

Cluster environment Be sure to specify Use.

Logical IP address Specify the logical IP address of the cluster system. This item is required.

Shared disk Specify the shared disk path of the cluster system. JP1/CSC - Agent creates on the shared disk information carried over to the standby server. This item is required.

Standby server
In the items in the Client Security Control - Agent Setup dialog box, set the same information as for the active server.

Setup item	Description
Cluster environment	Be sure to specify Use.
Logical IP address	Specify the logical IP address of the cluster system. This item is required.
Shared disk	Specify the shared disk path of the cluster system. JP1/CSC - Agent creates on the shared disk information carried over to the standby server. This item is required.

(6) Registering a service name in the cluster software (for the active server only)

In the cluster software (MSCS or WSFC), register the name of the JP1/CSC - Agent service that you want to be able to fail over. The name of the service is as follows:

Service name Resource type

JP1_NETM_CSCA Generic service

For details about how to register service names, see the MSCS or WSFC documentation. When registering service names, note the following:

Have the service carried over from the active server to the standby server, with the IP address and shared disk used.

Have the JP1/CSC - Agent service also fail over when the network control product is failed over.

Set JP1/CSC - Agent to start once the logical IP address and shared disk can be used. Also set JP1/CSC - Agent to stop in the reverse order from how it starts.

Service name	Resource type
JP1_NETM_CSCA	Generic service
