9.2.2 Message notification by administrator

Administrators can send messages to clients using the Client Security Management window of AIM. Note that JP1/Software Distribution Client 07-50 or later must be installed on any client that receives messages.

Organization of this subsection
(1) Transitions of windows used to send messages
(2) Sending messages

(1) Transitions of windows used to send messages

The following figure shows the transitions of windows used to send messages.

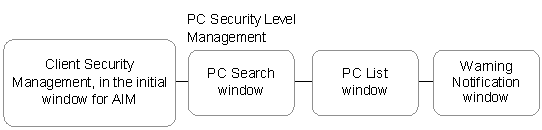

Figure 9-1 Transitions of windows used to send messages

[Figure]

To open the initial window of AIM, log in to AIM with CSC administrator permissions. For the procedure to open the initial window, see 8.1 Transitions of windows used for client monitoring.

(2) Sending messages

You need to specify a client to which a message is to be sent, and also write the message. Messages can be edited in the Warning Notification window.

To edit and send a message to a specified client:

  1. In the PC Search window, search for the client to which to send the message.
    The PC List window is displayed.

  2. Select the Asset No. check box of the client to which the message is to be sent.
    The client to which the message is to be sent is selected.

  3. In Warning notification, click the Message button.

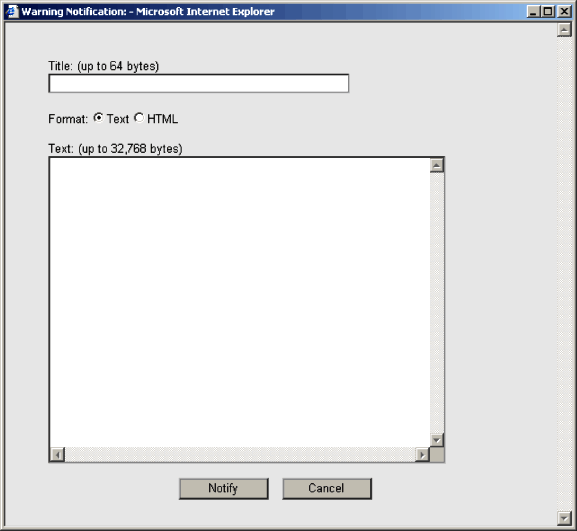

    The Warning Notification window is displayed.

    [Figure]

  4. Enter the title.
    Enter the title of the message as a string of 64 or fewer bytes

  5. Select either Text or HTML as the format of the displayed message.

    Note
    HTML messages can be sent only if the version of JP1/Software Distribution Client is 08-10 or later. If the version is 08-00 or earlier, plain-text messages are sent even if HTML is selected.

  6. Enter the text.
    Enter the body of the message as a string of 32,768 or fewer bytes.

  7. Click the Notify button.
    A message box is displayed to confirm client notification.

  8. Click the OK button.
    The message is sent to the client, and the Action Message dialog box is displayed. If an error message is displayed, see 17.4.1 Action messages in the PC List window, and act accordingly.

  9. Click the Close button.
    The Action Message dialog box closes.

Note that messages can be sent even when client security management is disabled for the client.

Note
When a message is sent to a client user, the job execution result is saved as a processing job to the execution log of JP1/Software Distribution Manager. For details about saving the results of message notification jobs, see 6.12.2 Checking the execution results of message notification jobs.
